Tailgate Latch Control Assembly: Removal

All vehicles

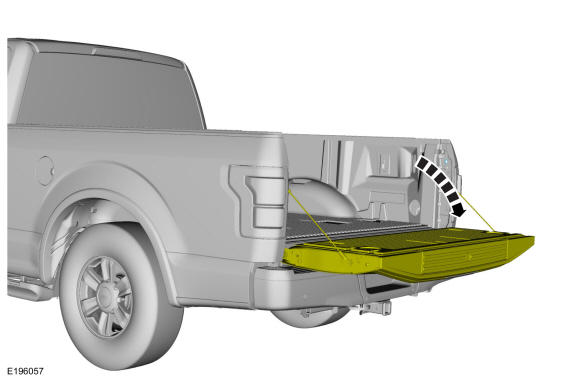

1. Open the tailgate.

   Courtesy of FORD MOTOR COMPANY

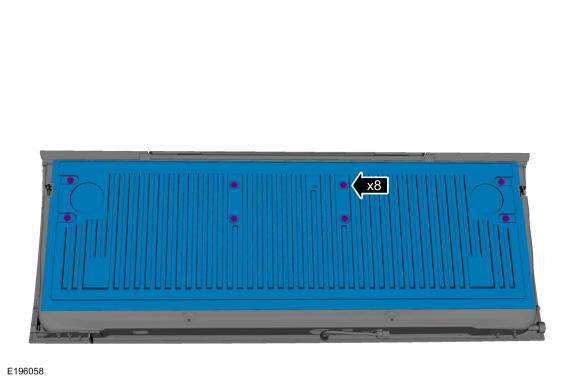

2. If equipped. Remove the bedliner tailgate cover.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

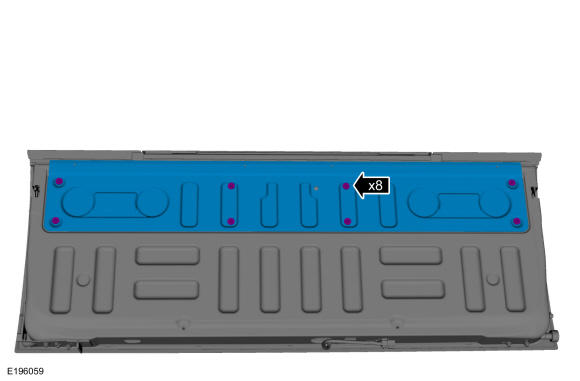

3. If equipped. Remove the tailgate access panel bolts and the tailgate access panel.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

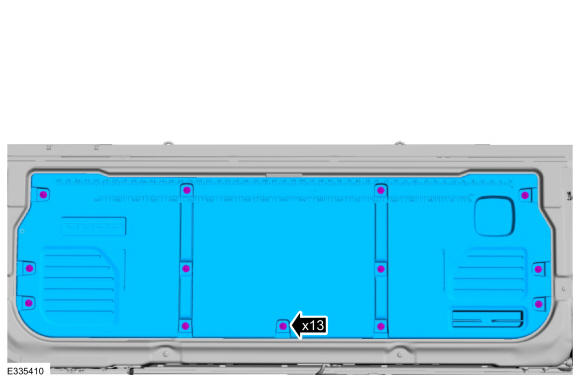

4. If equipped. Remove the workspace tailgate access panel bolts and the workspace tailgate access panel.

   Torque

   : 71 lb.in (8 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles without mechanical tailgate handle

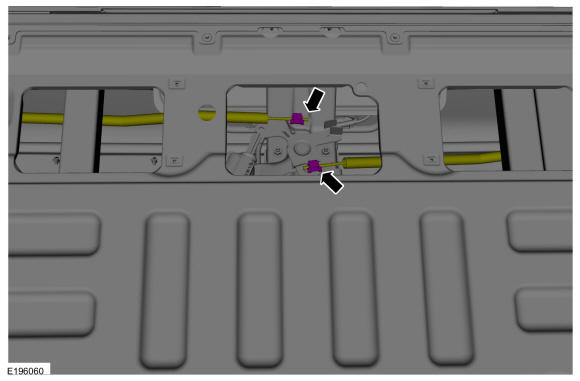

5. Disconnect the right and left tailgate latch actuating rods.

   Courtesy of FORD MOTOR COMPANY

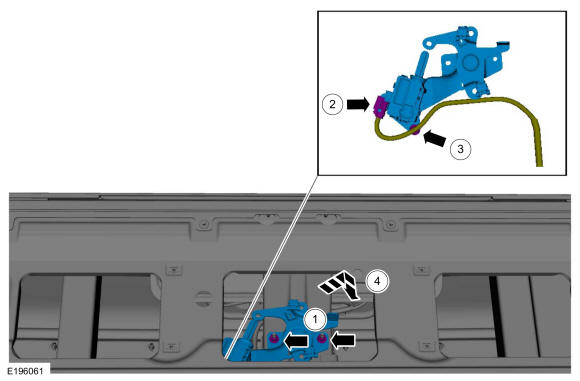

6. Remove the tailgate latch control assembly.
   1. Remove the tailgate latch control assembly nuts.

      Torque

      : 80 lb.in (9 Nm)

   2. Disconnect the tailgate latch actuator electrical connector.
   3. Disconnect the tailgate latch actuator harness routing clip.
   4. Remove the tailgate latch control assembly.

   Courtesy of FORD MOTOR COMPANY

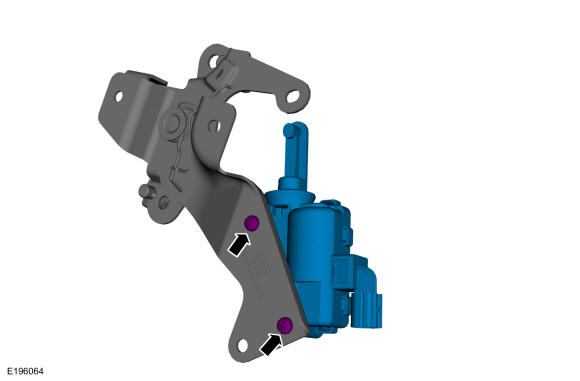

7. NOTE: This step is only necessary when installing a new component.

   Remove the tailgate latch actuator.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with mechanical tailgate handle

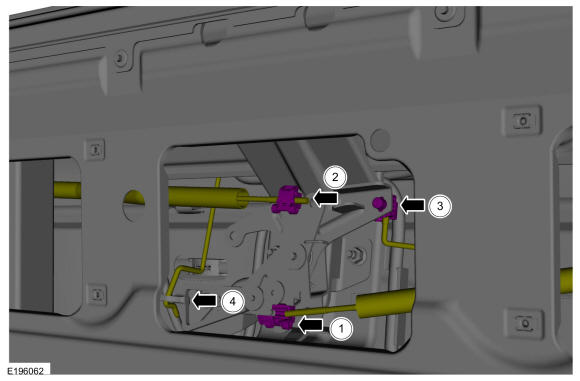

8. NOTE: Complete manual tailgate latch shown in illustration, others similar.

   Disconnect the tailgate latch actuating rods.

   1. Disconnect the left tailgate latch actuating rod.
   2. Disconnect the right tailgate latch actuating rod.
   3. Disconnect the tailgate handle to control assembly actuating rod.
   4. If equipped. Disconnect the tailgate lock to control assembly actuating rod.

   Courtesy of FORD MOTOR COMPANY

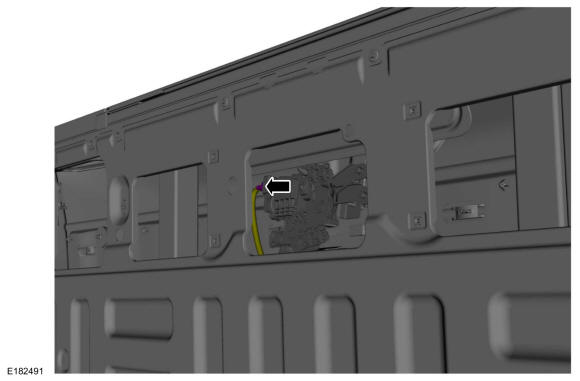

9. If equipped. Disconnect the tailgate lock actuator electrical connector.

   Torque

   : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

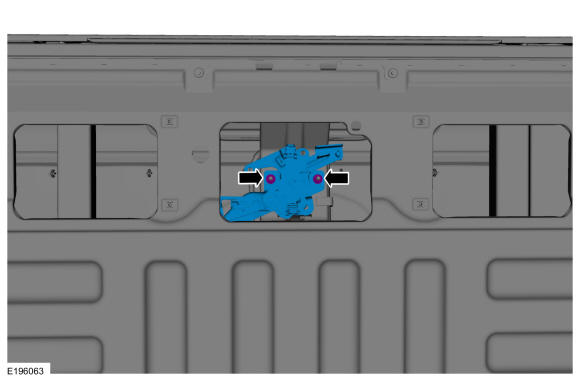

10. Remove the nuts and the tailgate latch control assembly.

    Torque

    : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
