Front Door Lock Control Switch: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

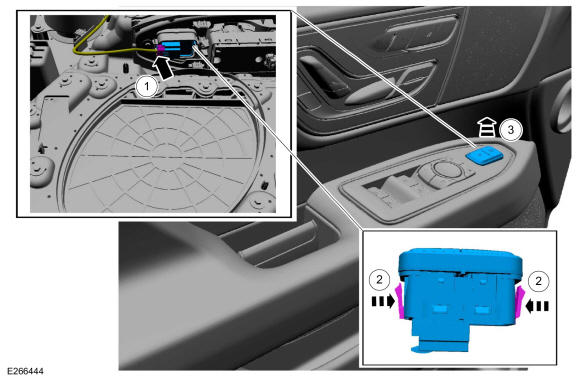

NOTE: LH side shown, RH side similar.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .
  2. Remove the front door lock control switch.

    1. Disconnect the front door lock control switch electrical connector.
    2. Release the retaining clips.
    3. Remove the front door lock control switch.

GFD709171Courtesy of FORD MOTOR COMPANY
