Differential Control Module Rear (DCMR): Removal
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
-

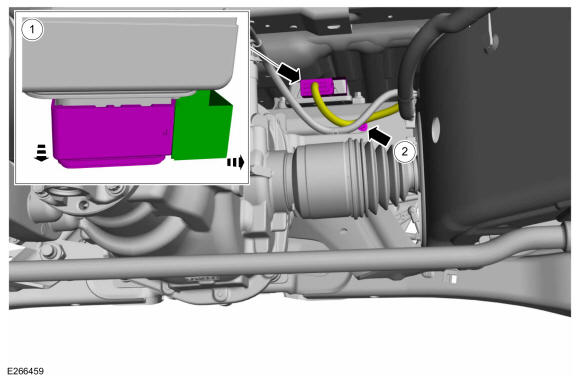

- Disconnect DCMR electrical connector by disengaging the side locking tab and pulling on the harness.
- Detach the wiring harness retainer and position aside.
- Disconnect DCMR electrical connector and detach the wiring harness retainer.

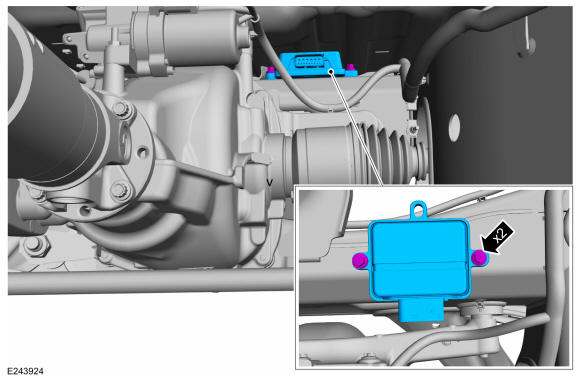

- Remove the bolts and the DCMR.
Torque: 13 lb.in (1.5 Nm)
