Oil Pressure Control Solenoid: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

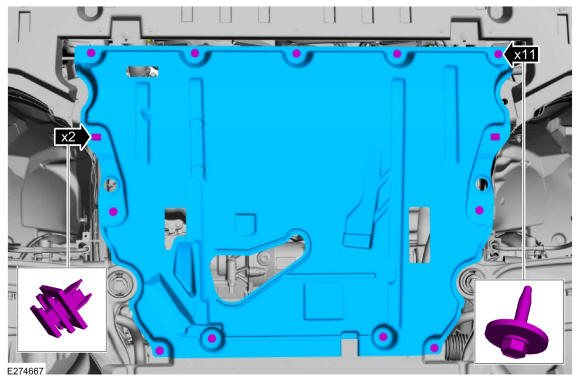

  2. Remove the retainers and the underbody shield.
    GFD644727Courtesy of FORD MOTOR COMPANY

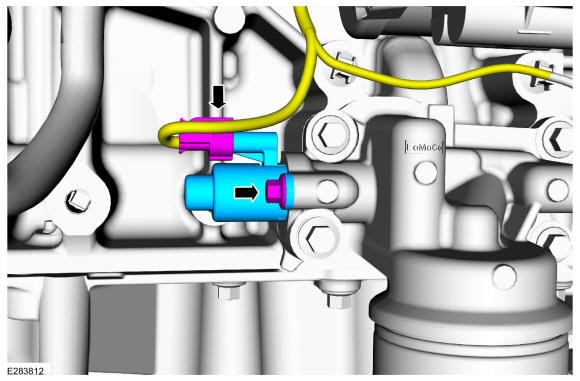

  3. Disconnect the electrical connector, remove the bolt and the oil pressure control solenoid.

    Torque: 97 lb.in (11 Nm)

GFD644728Courtesy of FORD MOTOR COMPANY
