Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the screws, release the clips and remove the center console floor trim panel.

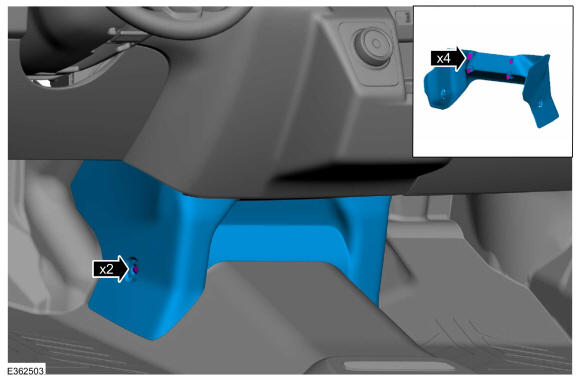

    GFD786461Courtesy of FORD MOTOR COMPANY
  2. Open the glove box.

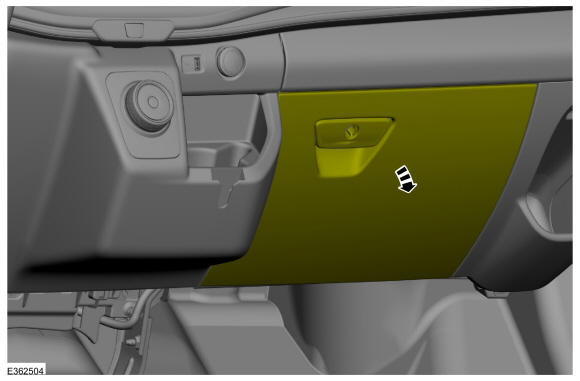

    GFD786462Courtesy of FORD MOTOR COMPANY
  3. Remove the upper glove box trim panel. Use the General Equipment: Interior Trim Remover

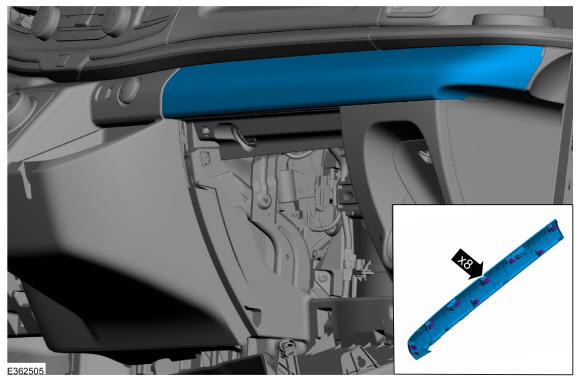

    GFD786463Courtesy of FORD MOTOR COMPANY
  4. Remove the knee bolster trim panel. Use the General Equipment: Interior Trim Remover

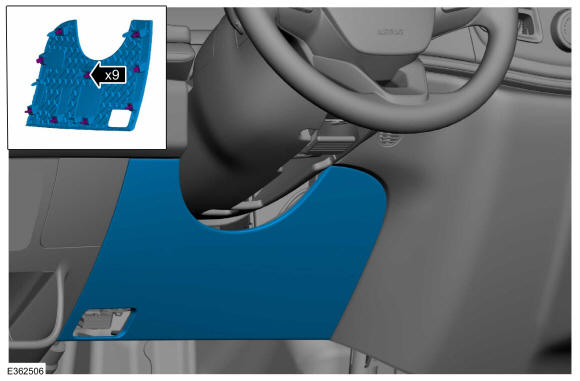

    GFD786464Courtesy of FORD MOTOR COMPANY
  5. Remove the center console trim panel screws.

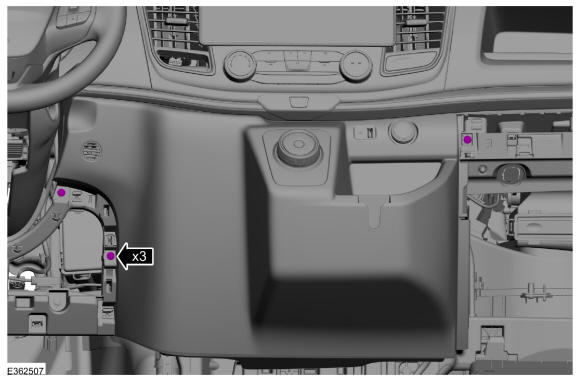

    GFD786465Courtesy of FORD MOTOR COMPANY
  6. Remove and disconnect center console trim panel.

    1. Release the center console trim panel from the instrument panel.
    2. Disconnect the 12 volt accessory port, USB and the GSM. Remove the center console trim panel.

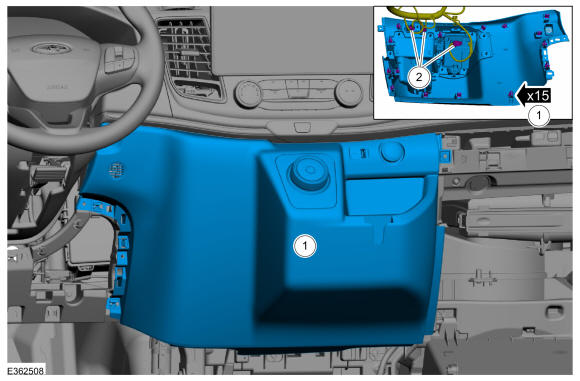

    GFD786466Courtesy of FORD MOTOR COMPANY
  7. Remove the screws and the GSM.

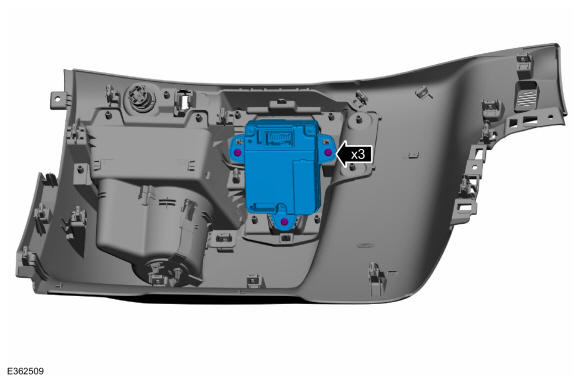

GFD786467Courtesy of FORD MOTOR COMPANY
