Front Door Window Control Switch: Removal

NOTE: LH shown, RH similar.
  1. Remove the front door trim panel. Refer to: FRONT DOOR TRIM PANEL .

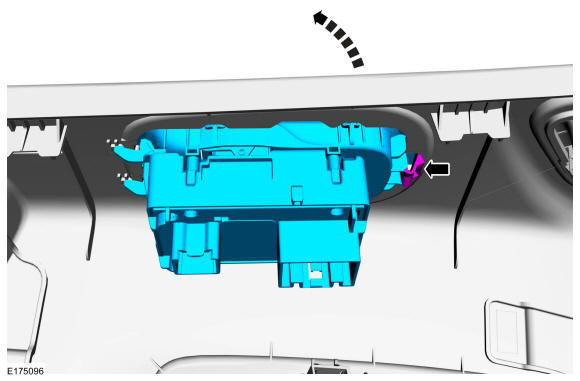

  2. Remove the front door window control switch from the door trim panel.
    GFD788414Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step only necessary if installing a new component.

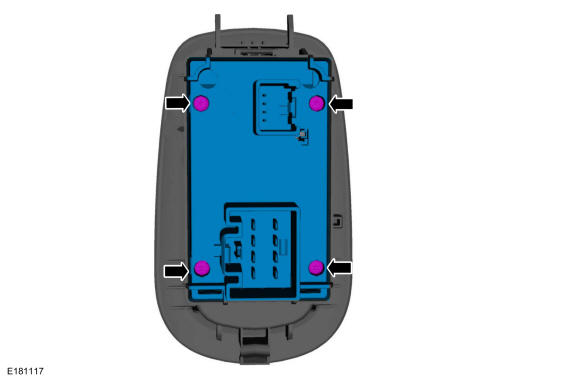

    Remove the screws and seperate the bezel from the front door window control switch.

GFD788415Courtesy of FORD MOTOR COMPANY
