Fuel Pump Driver Module (FPDM): Installation

Chassis Cab

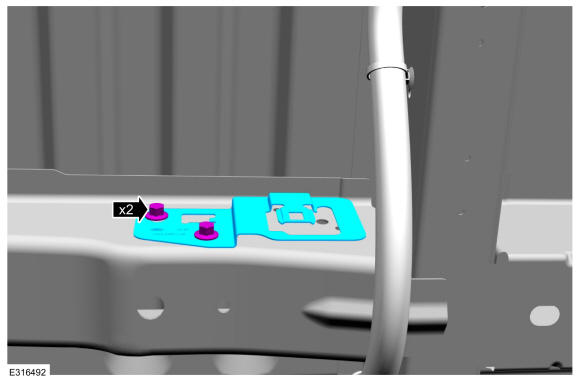

1. Only If removed, install the fuel pump driver module bracket, then install and tighten the bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

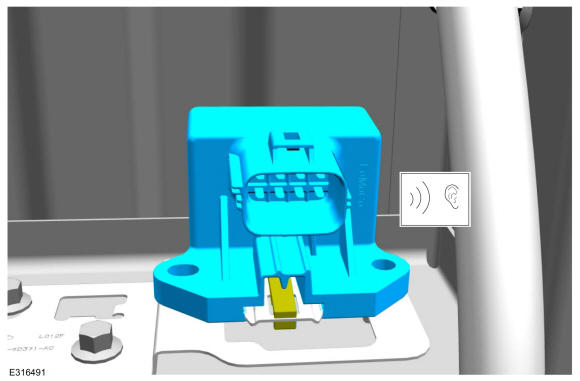

2. Install the fuel pump driver module to the bracket until it clicks and locks into position.

   Courtesy of FORD MOTOR COMPANY

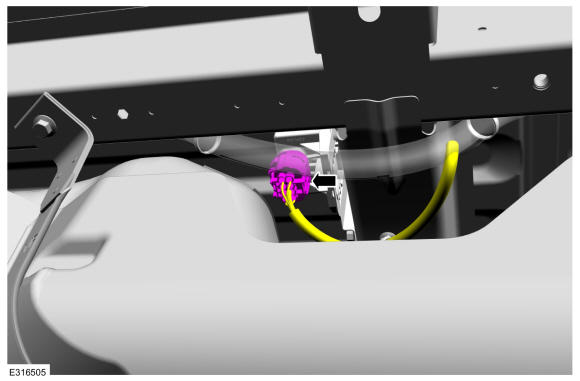

3. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. Install the fuel tank. Refer to: Fuel Tank .

   Full Body

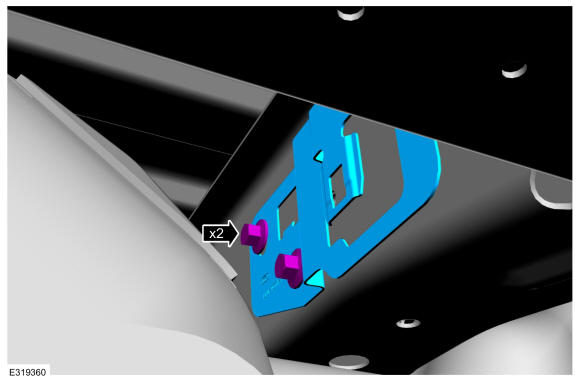

5. Only If removed, install the fuel pump driver module bracket, then install and tighten the bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

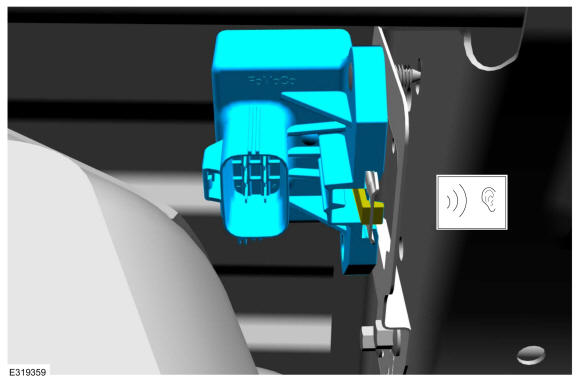

6. Install the fuel pump driver module to the bracket until it clicks and locks into position.

   Courtesy of FORD MOTOR COMPANY

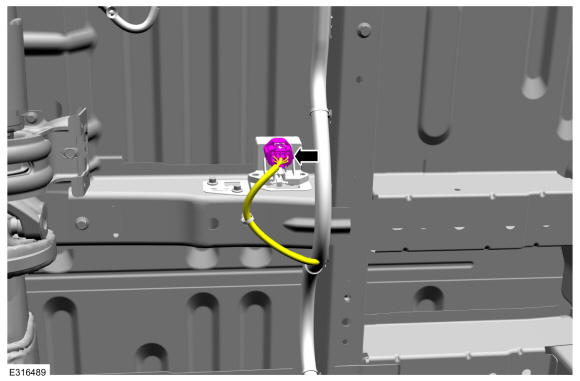

7. Connect the fuel pump driver module electrical connector.

Courtesy of FORD MOTOR COMPANY
