Piston Diameter
WARNING: This page is about a different car, the 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Check
-

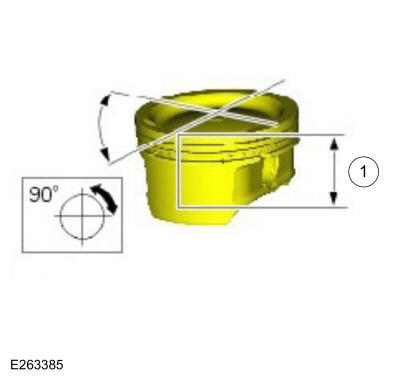

- Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height down from the top of the piston at the point indicated.
- Refer to specifications for the piston diameter (DN) height. Refer to: Specifications - 2.7L . Refer to: Specifications - 3.3L . Refer to: Specifications - 3.5L EcoBoost . Refer to: Specifications - 3.5L PowerBoost .
