Wheel Speed Sensor Ring: Removal

  1. Remove the axle shaft. Refer to: Axle Shaft - Vehicles With: Ford 8.8 Inch Ring Gear. Refer to: AXLE SHAFT - Vehicles With: Ford 9.75 Inch Ring Gear .

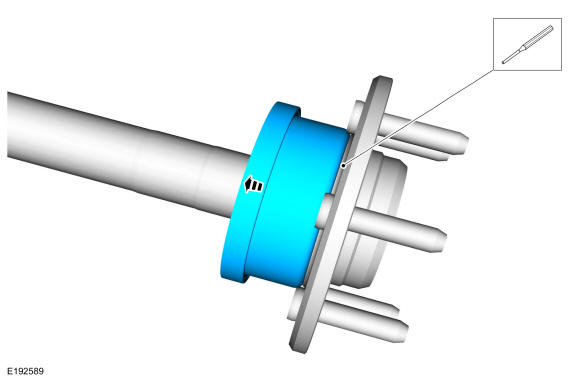

  2. Using a suitable driver, remove the wheel speed sensor ring. Use the General Equipment: Punch
GFD677247Courtesy of FORD MOTOR COMPANY
