AWD Module

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, and 2022 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

The AWD module is the logic module for the AWD system. Multiple modules/system inputs are used for the AWD system to determine the percentage of torque to be transferred to the front.

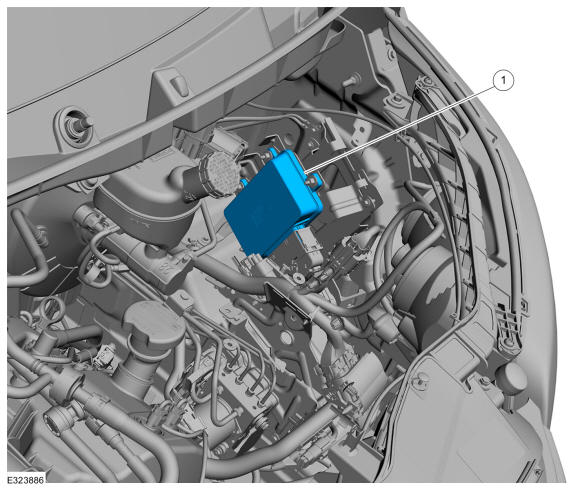

GFD639604Courtesy of FORD MOTOR COMPANY
Item Description
AWD module

The AWD module located driver's side on the drivers side quarter panel close to the bulkhead.
