Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: A new HCU is equipped with an ABS module. A new ABS module does not come equipped with an HCU.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the onscreen instructions.
Remove the left-hand headlamp. Refer to: Headlamp Assembly .

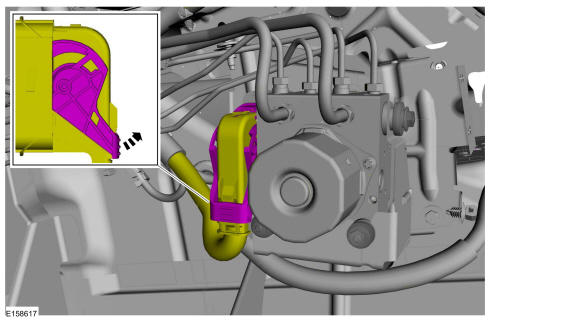

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

NOTE: Note the position of the brake tubes to aid installation.

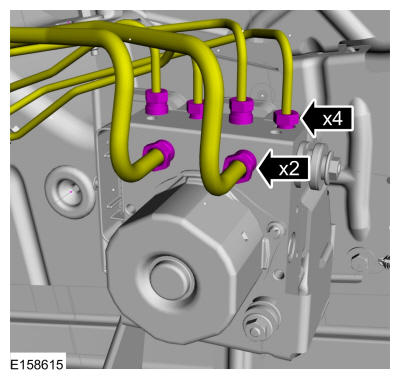

Disconnect the brake tubes.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

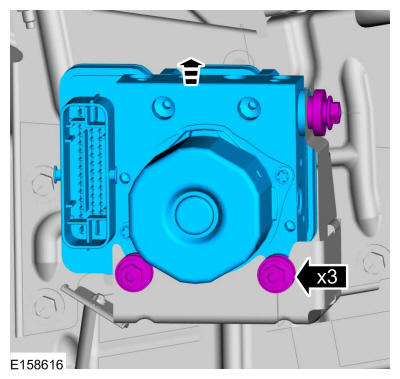

Remove the bolts, loosen the nut and remove the HCU
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
