Connector Repair Procedures

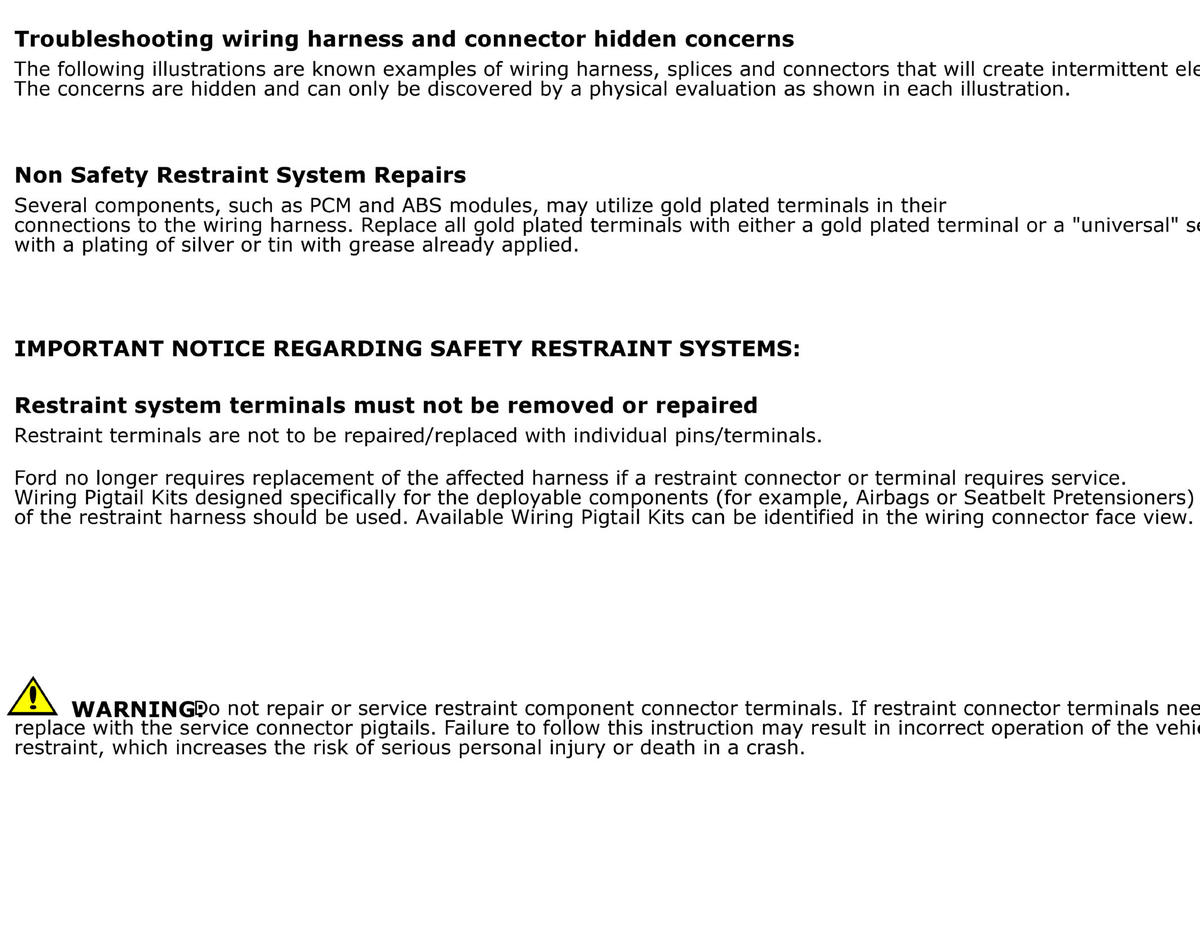

GFDWR127599Courtesy of FORD MOTOR COMPANY

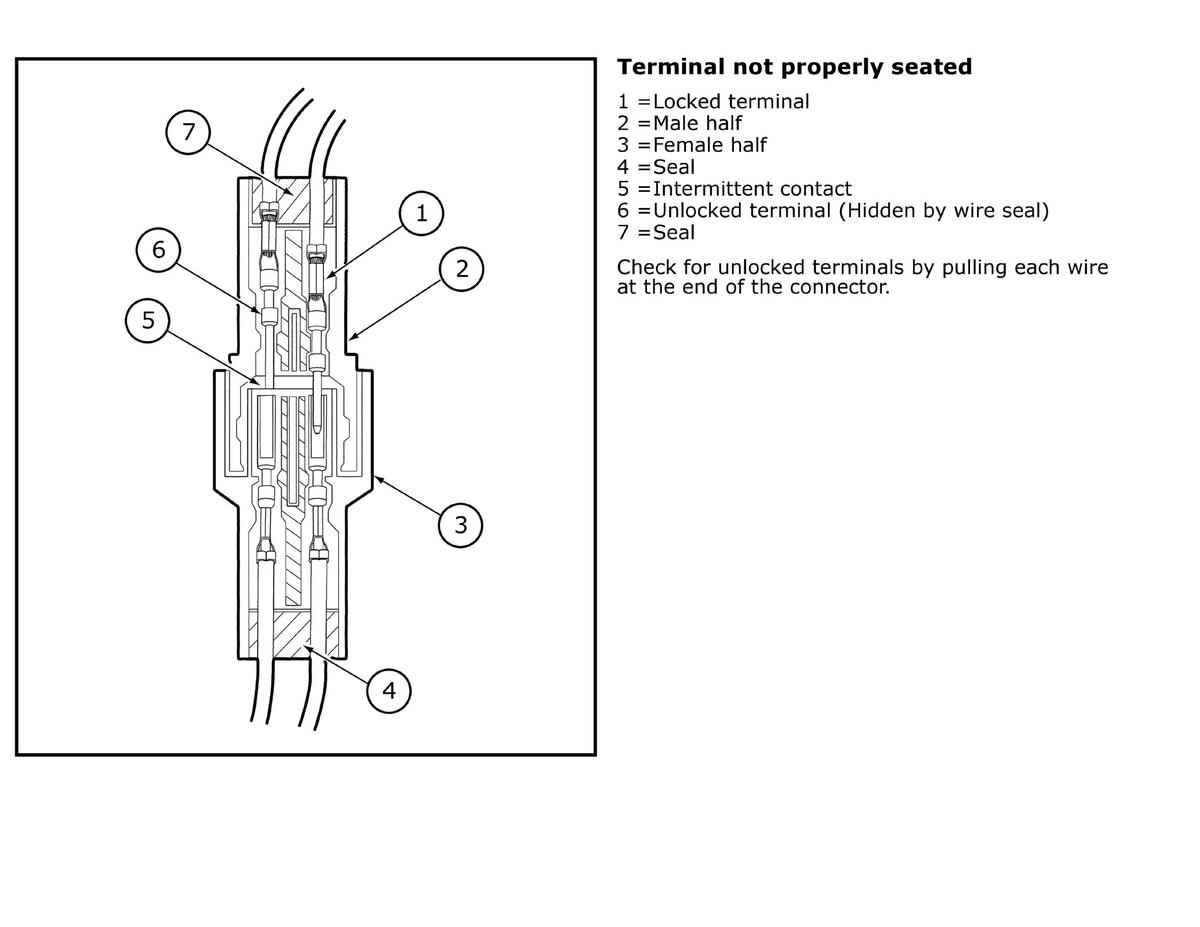

GFDWR127600Courtesy of FORD MOTOR COMPANY

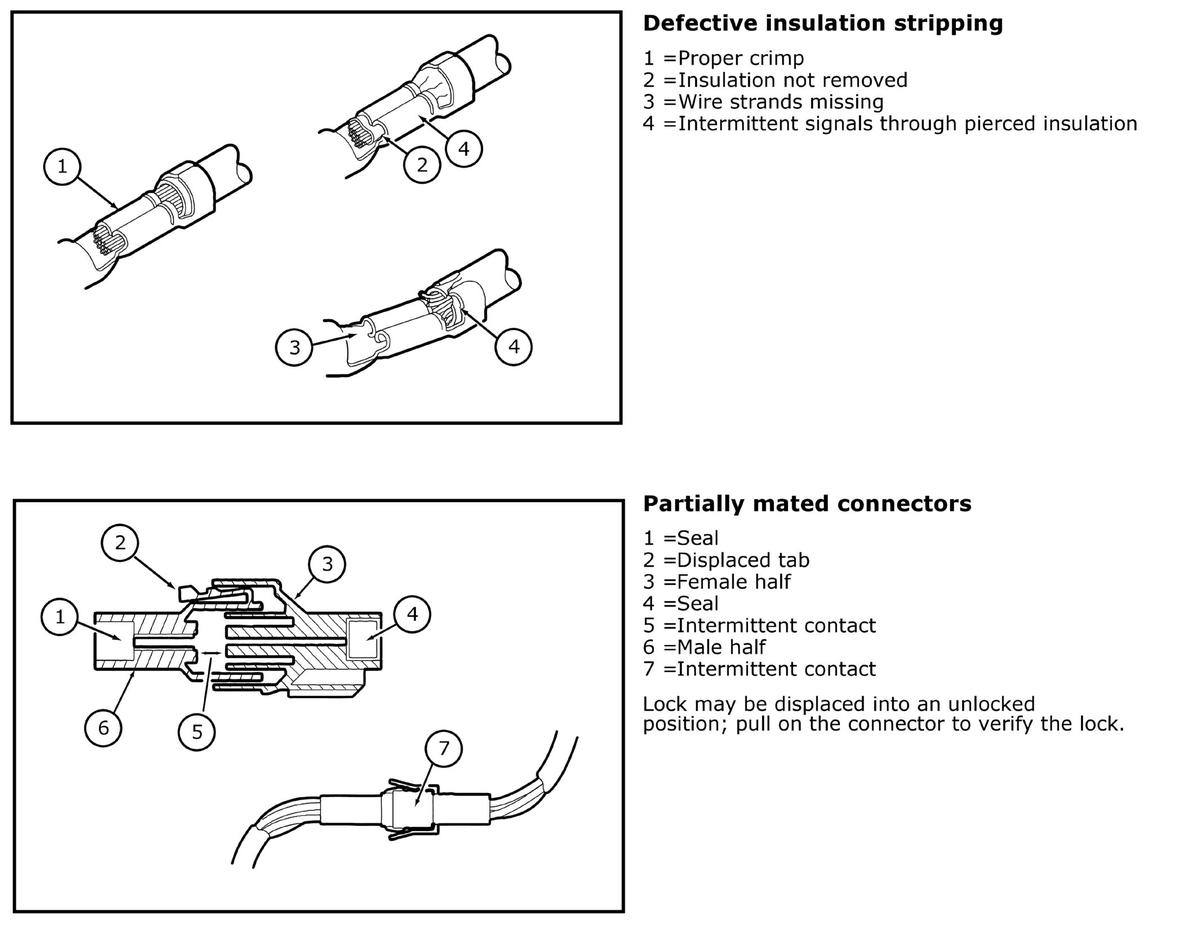

GFDWR127601Courtesy of FORD MOTOR COMPANY

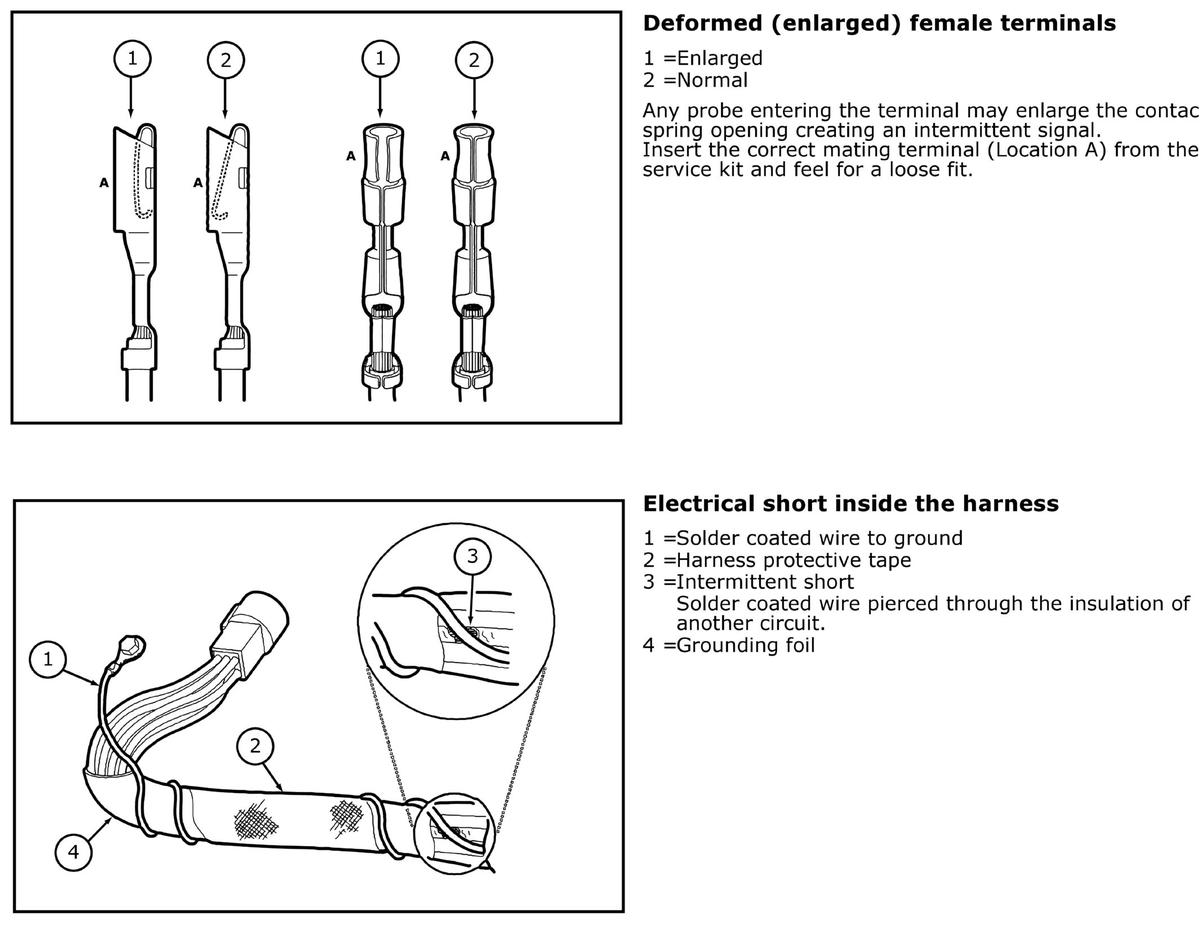

GFDWR127602Courtesy of FORD MOTOR COMPANY

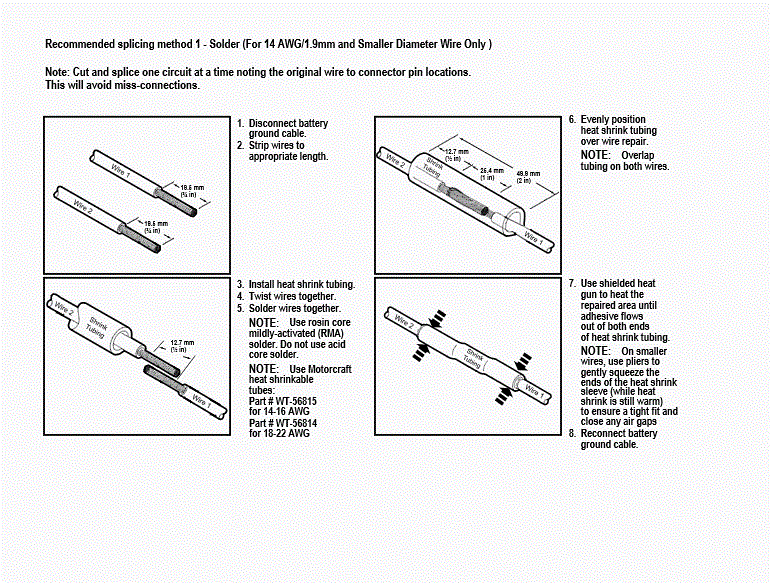

GFDWR127603Courtesy of FORD MOTOR COMPANY

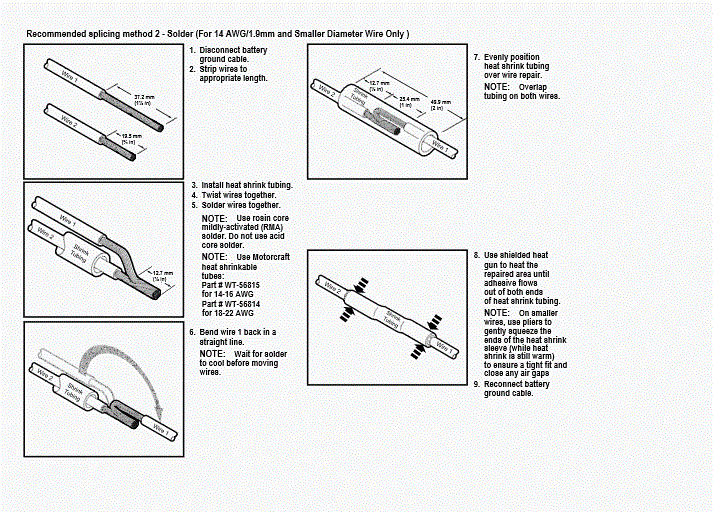

GFDWR127604Courtesy of FORD MOTOR COMPANY

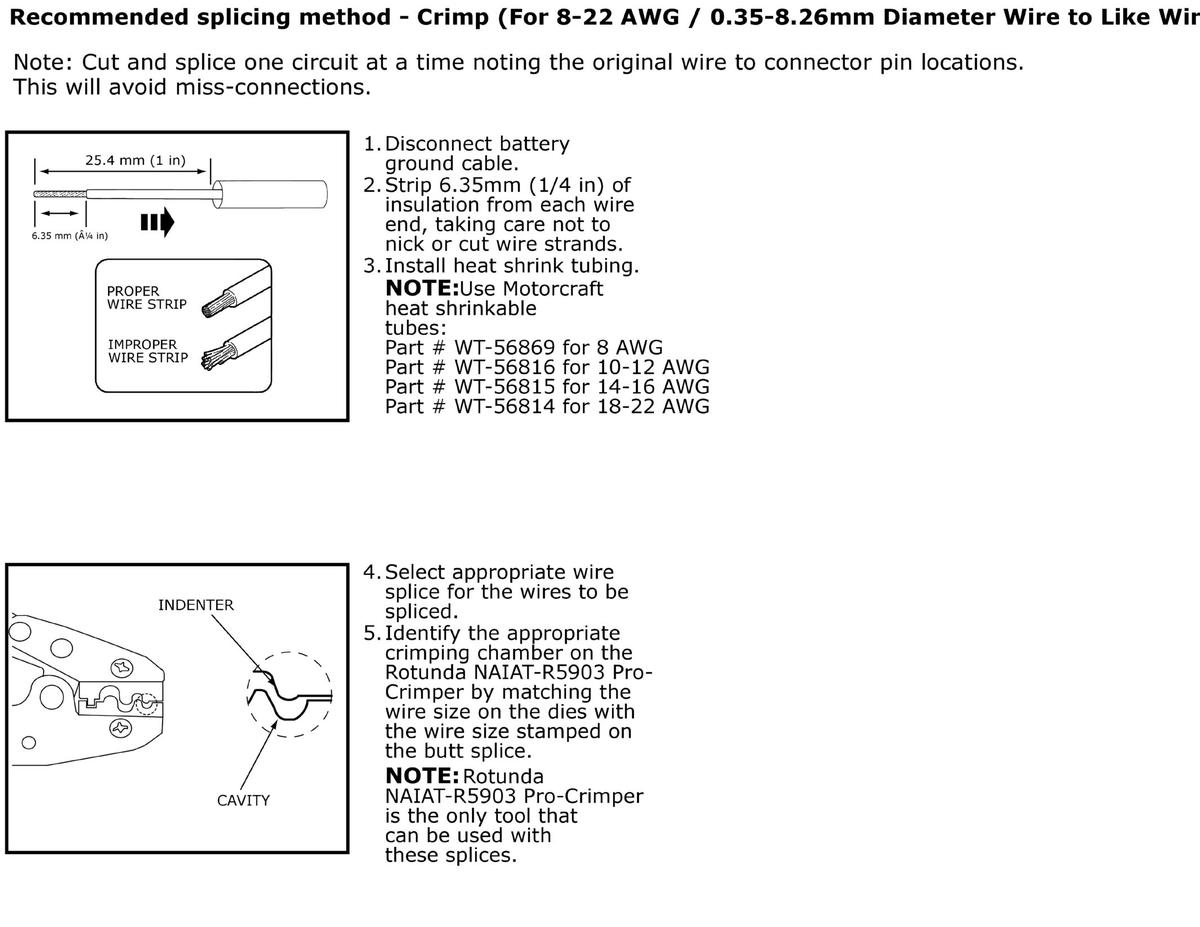

GFDWR127605Courtesy of FORD MOTOR COMPANY

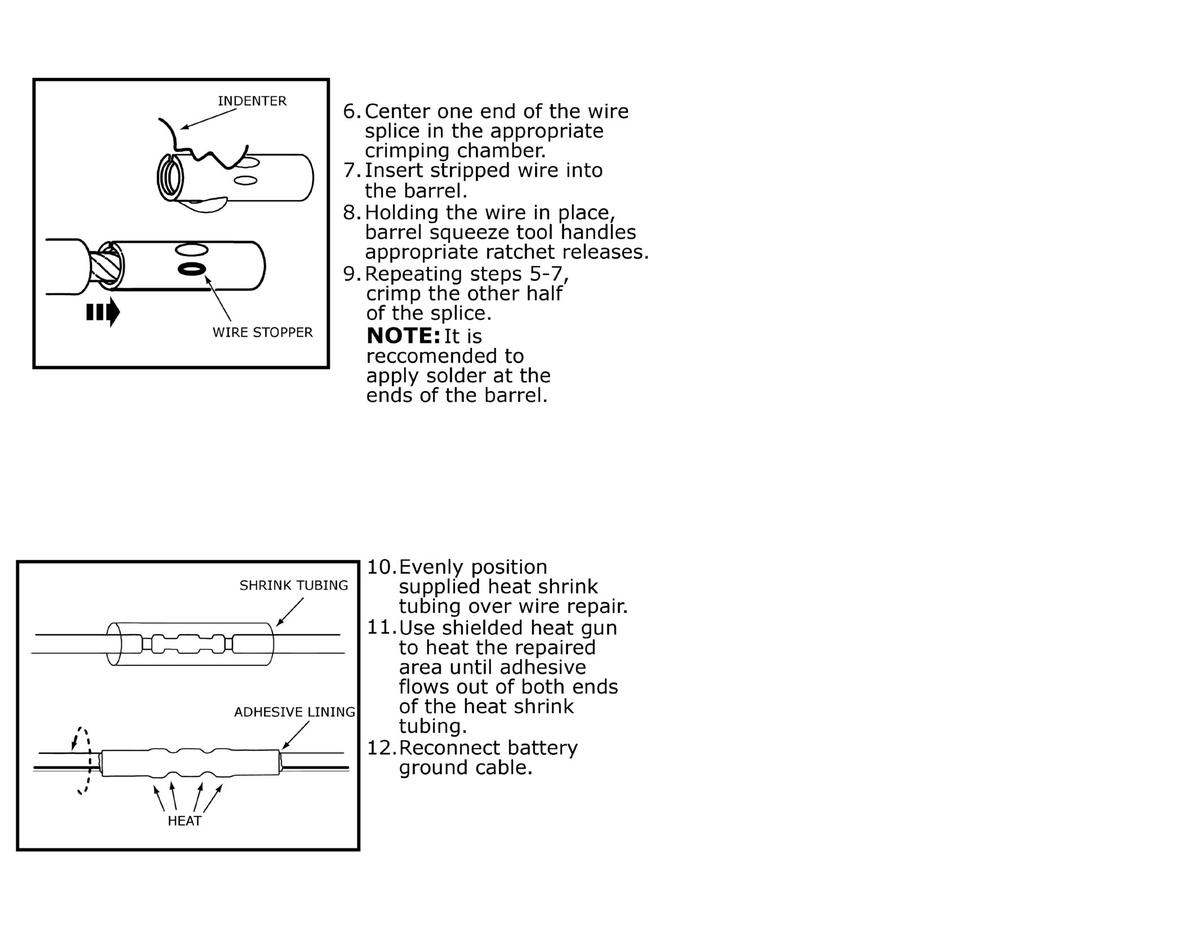

GFDWR127606Courtesy of FORD MOTOR COMPANY

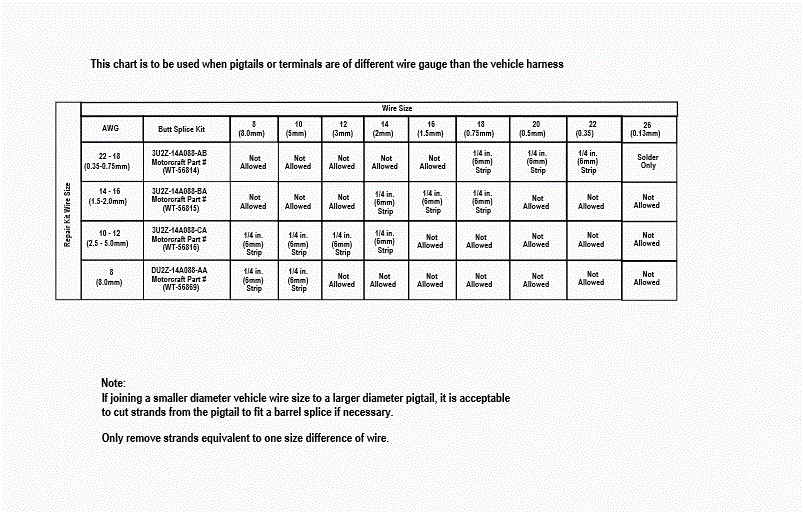

GFDWR127607Courtesy of FORD MOTOR COMPANY
