Cruise Control Module (CCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover . Refer to: Front Bumper Cover

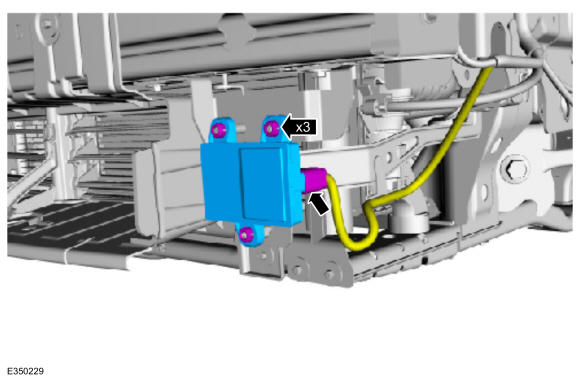

NOTE: Gently pry the CCM (cruise control module) from the retaining studs.

Disconnect the electrical connector and remove the CCM from the bracket.

Courtesy of FORD MOTOR COMPANY
Inspect the CCM grommets for damage. Replace any damaged grommets

Courtesy of FORD MOTOR COMPANY

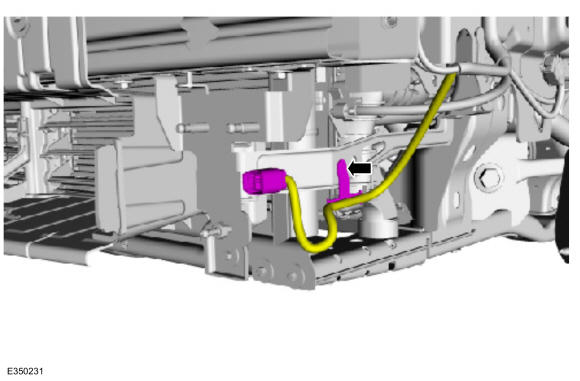

If bracket removal is required, separate the wiring harness retainer from the CCM bracket.

Courtesy of FORD MOTOR COMPANY

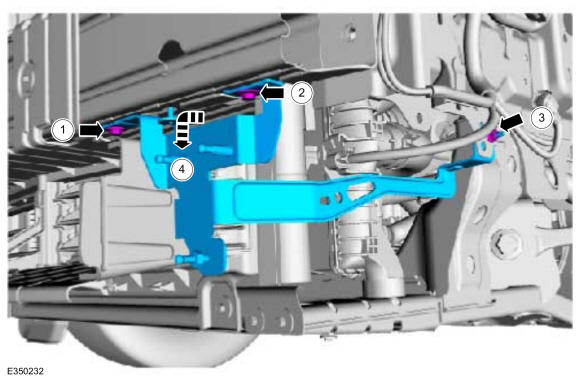

Remove the CCM bracket.
1. Remove the CCM bracket bolt.
  Torque

  : 80 lb.in (9 Nm)
2. Remove the CCM bracket bolt.
  Torque

  : 80 lb.in (9 Nm)
3. Remove the CCM bracket nut.
  Torque

  : 80 lb.in (9 Nm)
4. Slide the CCM bracket left and then down.

Courtesy of FORD MOTOR COMPANY
