Receiver Drier: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module. Refer to: Cooling Module .
  2. NOTE: Make sure that all openings are sealed.

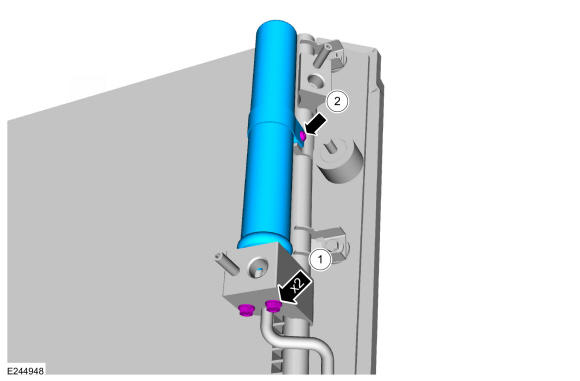

    1. Remove the bolts.

      Torque: 71 lb.in (8 Nm)

    2. Remove the retainer and the receiver drier.

      Torque: 44 lb.in (5 Nm)

GFD345624Courtesy of FORD MOTOR COMPANY
