Climate Control System - Component Location

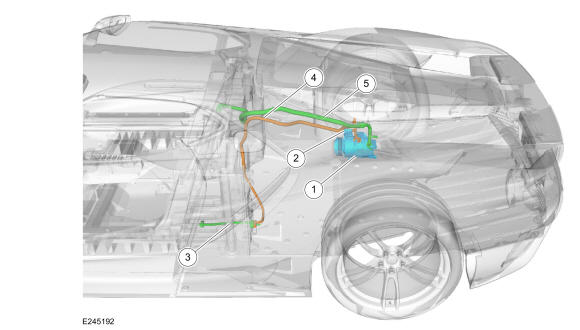

| Item | Description |
|---|---|
| 1 | A/C Compressor |
| 2 | A/C Pressure Transducer |
| 3 | Connector Block to A/C Compressor Line |
| 4 | A/C Compressor Outlet Line |
| 5 | A/C Compressor Inlet Line |

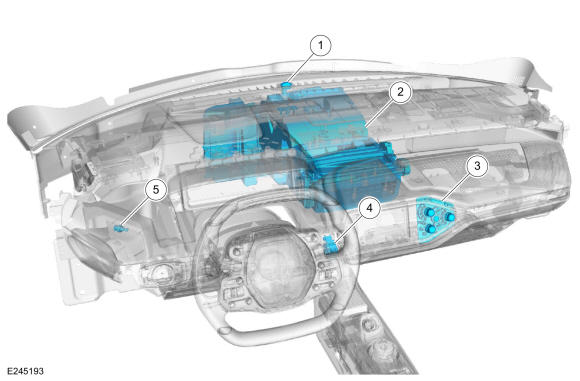

| Item | Description |
|---|---|
| 1 | Sunload Sensor |
| 2 | Climate Control Housing |
| 3 | Climate Control Assembly |
| 4 | In-vehicle Temperature and Humidity Sensor |
| 5 | Driver Side Register Air Discharge Temperature Sensor |

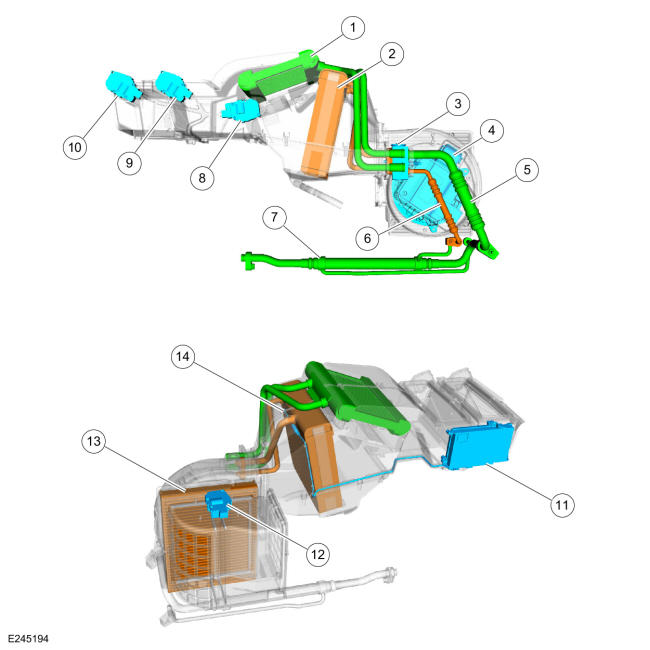

| Item | Description |
|---|---|
| 1 | Heater Core |
| 2 | Evaporator |
| 3 | Thermostatic Expansion Valve (TXV) |
| 4 | Blower Motor Control Module |
| 5 | Evaporator Outlet Line |
| 6 | Evaporator Inlet Line |
| 7 | IHX Line |
| 8 | Temperature Door Actuator |
| 9 | Defrost Vent Door Actuator |
| 10 | Footwell Vent/Register Door Actuator |
| 11 | HVAC Control Module |
| 12 | Air Inlet Door Actuator |
| 13 | Cabin Air Filter |
| 14 | Evaporator Temperature Sensor |

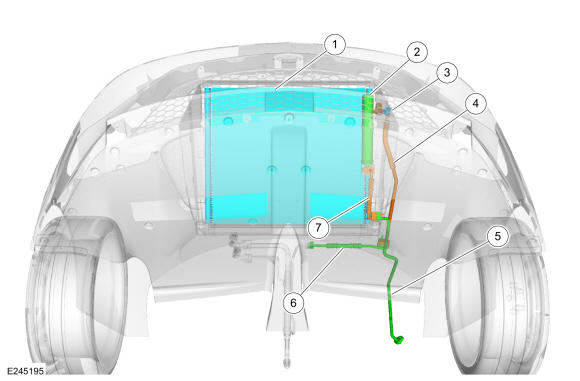

| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | Receiver Drier Element |
| 3 | Ambient Air Temperature Sensor |
| 4 | Condenser Inlet Line |
| 5 | Connector Block to Condenser Inlet Line |
| 6 | Condenser to Connector Block Line |
| 7 | Condenser Outlet Line |
