2.3L EcoBoost

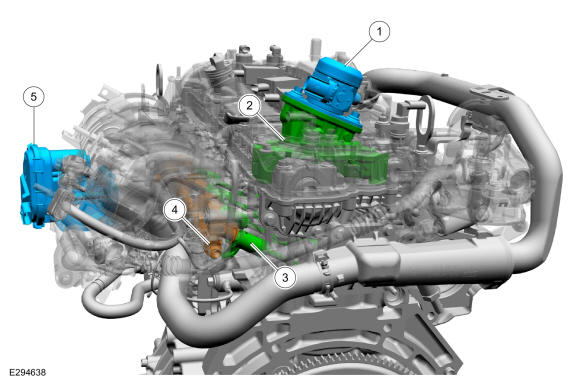

GFD513183Courtesy of FORD MOTOR COMPANY
Item Description
1 High-pressure fuel pump
2 High-pressure fuel pump drive unit
3 Fuel injectors (removed with the fuel rail)
4 Fuel rail
5 Throttle body
