Rear Subframe: Installation

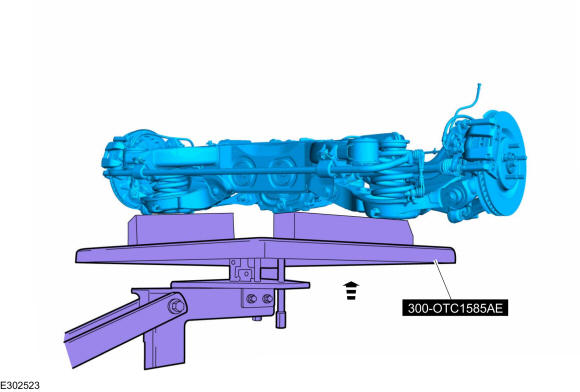

- Raise and align the rear subframe assembly to the witness marks made during removal. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block
-
NOTE: Only tighten the bolt finger tight at this stage.

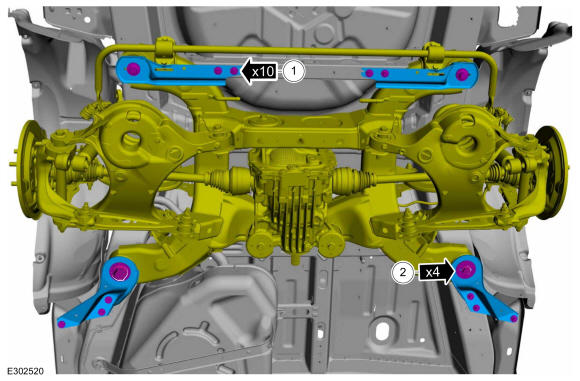

On both sides. Position the subframe and install the new rear subframe assembly front and rear bracket bolts.
Torque: 1: 41 lb.ft (55 Nm) 2: 148 lb.ft (200 Nm)

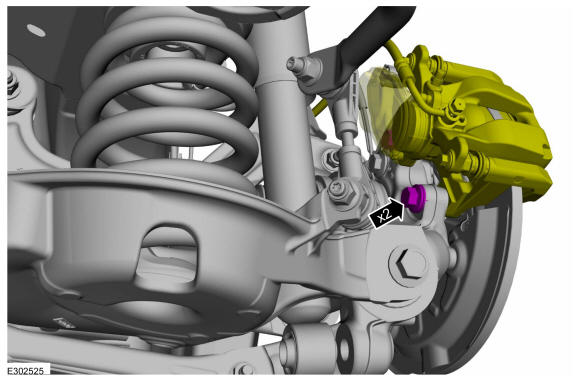

- On both sides. Position the brake caliper and install the new brake caliper bolts.
Torque: 122 lb.ft (165 Nm)

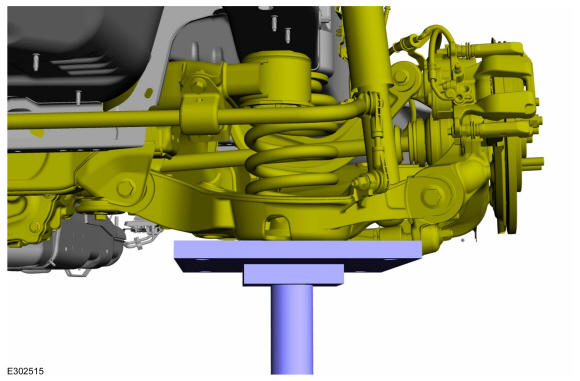

- Support the lower arm. Use the General Equipment: Vehicle/Axle Stands

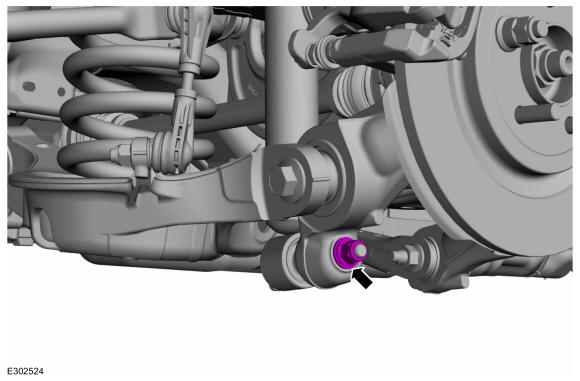

- On both sides. Install the new rear shock absorber lower bolt and nut.
Torque: 59 lb.ft (80 Nm)
- Install the rear driveshaft. Refer to: Rear Driveshaft .
- Install the wheels and tires. Refer to: Wheel and Tire .
- Check and if necessary adjust rear camber. Refer to: Rear Camber Adjustment .
