Third Row Seat Control Switch: Removal

NOTE: LH shown in illustration, RH similar.

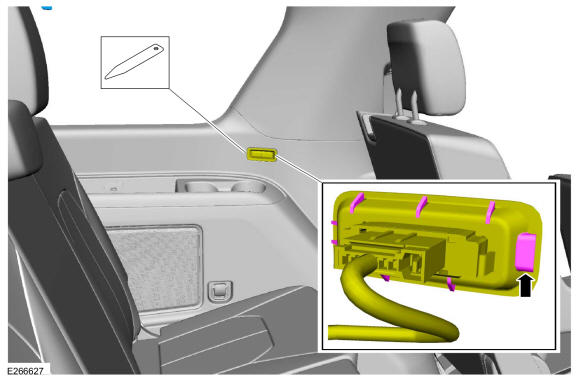

  1. Release the tab and position the third row seat control switch and bezel away from the loadspace trim panel. Use the General Equipment: Interior Trim Remover
    GFD584479Courtesy of FORD MOTOR COMPANY

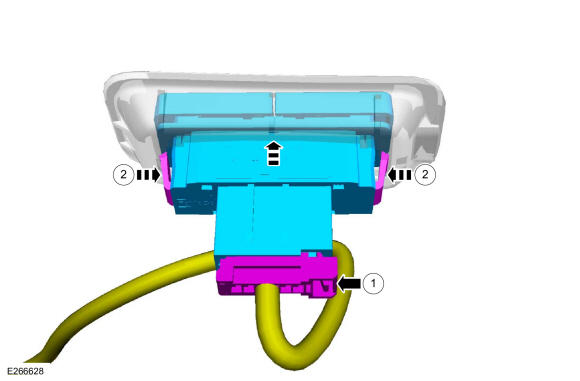

  2. Remove the third row seat control switch.

    1. Disconnect the electrical connector.
    2. Release the tabs.

GFD584480Courtesy of FORD MOTOR COMPANY
