Throttle Body: Installation

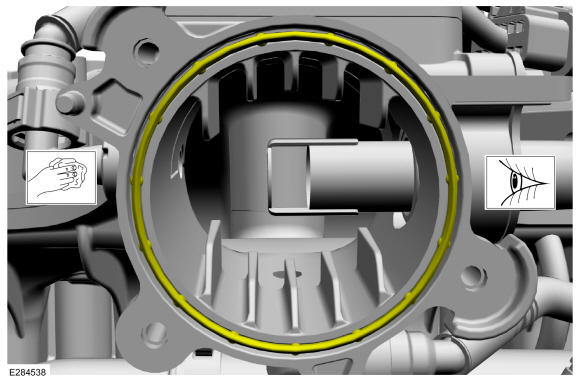

Inspect the throttle body gasket, clean or replace as needed. Clean the mating surfaces.

Courtesy of FORD MOTOR COMPANY

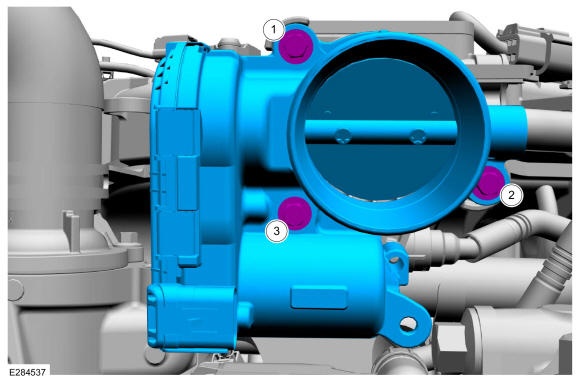

Install the throttle body, then install and tighten the throttle body bolts in the sequence shown.
Torque: 89 lb.in (10 Nm)

Fig 1: Throttle Body Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: When connecting the throttle body electrical connector engage the red connector locking tab after fully installing the throttle body electrical connector. The red tab will not slide forward unless the throttle body electrical connector is fully installed.

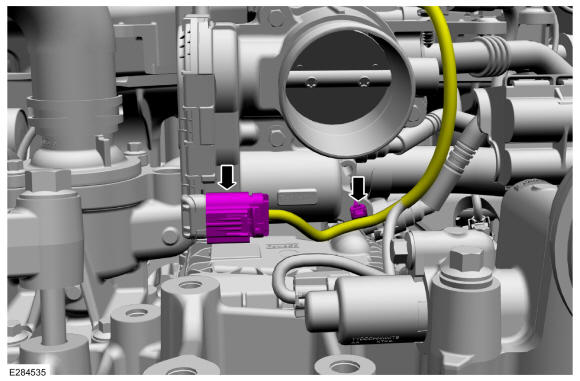

Connect the throttle body electrical connector. Attach the throttle body wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the charge air cooler (CAC) outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
Road test the vehicle.
