Rear Subframe: Installation

All vehicles

1. NOTE: FWD shown AWD similar.

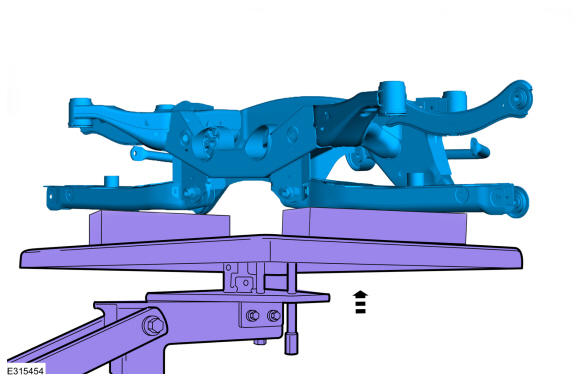

   Raise the rear subframe and position it to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

   Courtesy of FORD MOTOR COMPANY

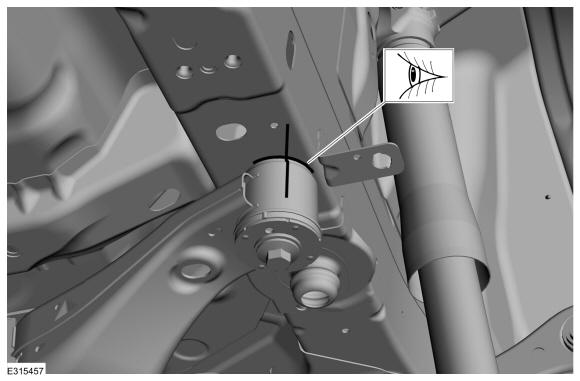

2. NOTE: Rear mounting location shown.

   On both sides Align index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

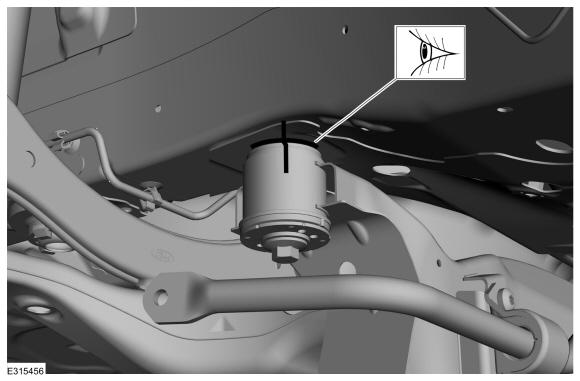

3. NOTE: Front mounting location shown.

   On both sides Align index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

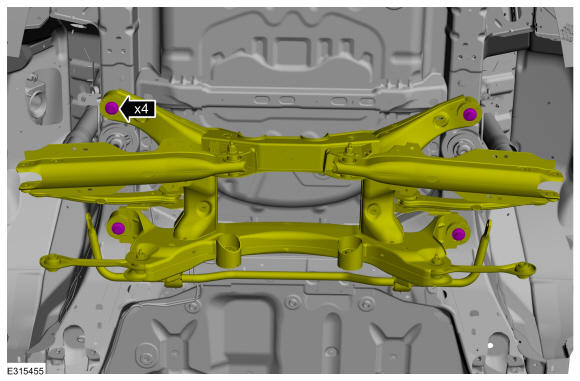

4. NOTE: FWD shown AWD similar.

   Install the bolts.

   Torque: 85 lb.ft (115 Nm)

   Courtesy of FORD MOTOR COMPANY

   All wheel drive (AWD) vehicles

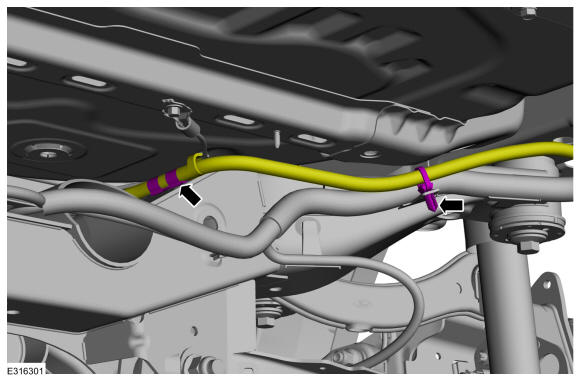

5. Remove the hose retainers and position aside the vent hose from rear subframe.

   Courtesy of FORD MOTOR COMPANY

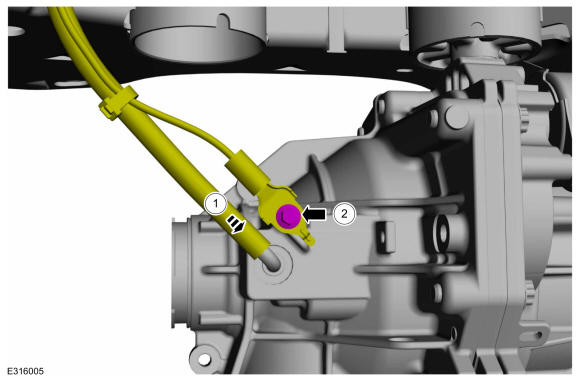

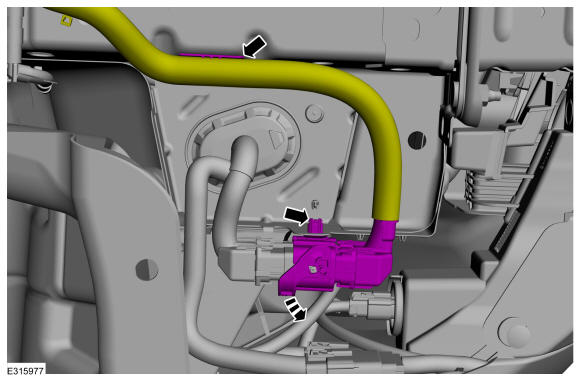

6. 1. Connect the vent hose.
   2. Install the bolt.

      Torque: 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

7. On both sides. Install the rear halfshaft. Refer to: Rear Halfshaft
8. Install the rear driveshaft. Refer to: Rear Driveshaft

   All vehicles

9. Connect the electrical connector and wire retainer.

   Courtesy of FORD MOTOR COMPANY

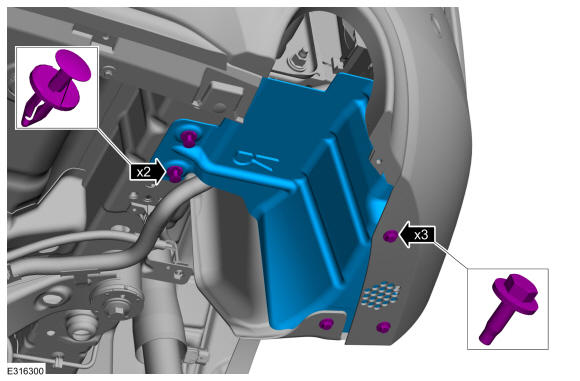

10. Install the underbody shield and the fasteners.

    Torque: 17 lb.in (1.9 Nm)

    Courtesy of FORD MOTOR COMPANY

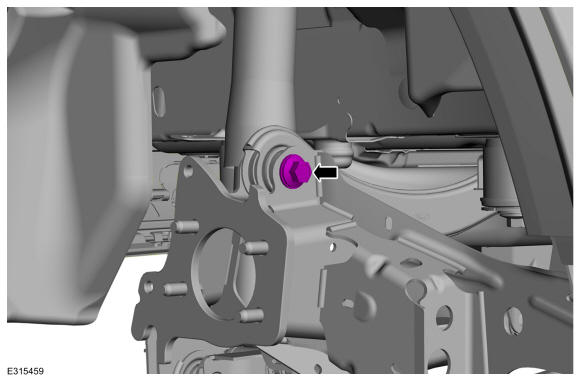

11. NOTE: Finger tight only at this stage.

    On both sides. Install the new front lower arm-to-wheel knuckle bolt.

    Courtesy of FORD MOTOR COMPANY

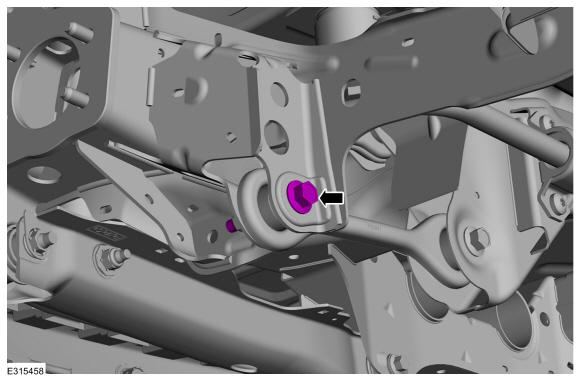

12. NOTE: Finger tight only at this stage.

    On both sides. Install the new upper arm-to-wheel knuckle bolt.

    Courtesy of FORD MOTOR COMPANY

13. On both sides. Install the rear spring. Refer to: Spring
14. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, or incorrect clamp load and bushing damage may occur.

    On both sides. Tighten the front lower arm-to-wheel knuckle bolt.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, or incorrect clamp load and bushing damage may occur.

    On both sides. Tighten the upper arm-to-wheel knuckle bolt.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

16. On both sides. Install the rear stabilizer bar link. Refer to: Rear Stabilizer Bar Link
17. Install the muffler and tail pipe. Refer to: Muffler and Tailpipe - FWD - 1.5L EcoBoost (132kW/180PS) - I3 (Y1) . Refer to: Muffler and Tailpipe - 4WD - 1.5L EcoBoost (132kW/180PS) - I3 (Y1) . Refer to: Muffler and Tailpipe - 2.0L EcoBoost (177kW/240PS) - MI4 . Refer to: Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV)
18. Install the wheels and tires. Refer to: Wheel and Tire
19. Check and, if necessary, adjust rear toe. Refer to: Rear Toe Adjustment
