Turbocharger Bypass Valve: Removal

NOTE: Removal steps in this procedure may contain installation details.

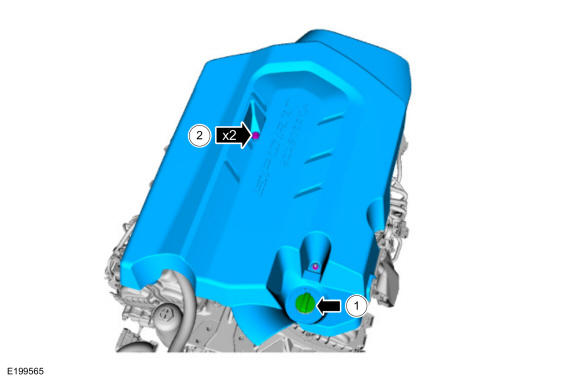

- Remove the oil filler cap.
- Remove the nut and bolt and remove the engine appearance cover.
  Torque: 42 lb.in (4.8 Nm)
Courtesy of FORD MOTOR COMPANY

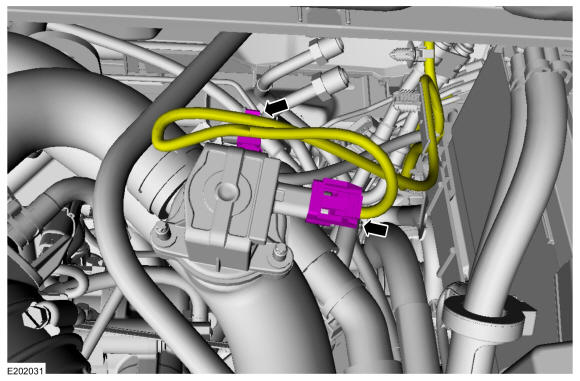

Disconnect the turbocharger bypass valve electrical connector, and remove harness from mounting stud.

Courtesy of FORD MOTOR COMPANY

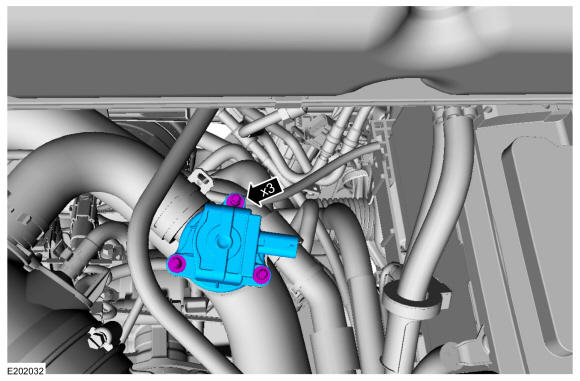

Remove the retainers and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
