Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the coolant outlet connector. Refer to: COOLANT OUTLET CONNECTOR .

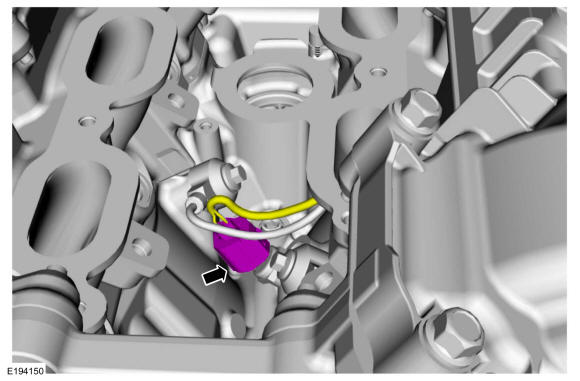

- Disconnect the ECT sensor electrical connector.
-
NOTE: Do not reuse the ECT sensor, install a new sensor.

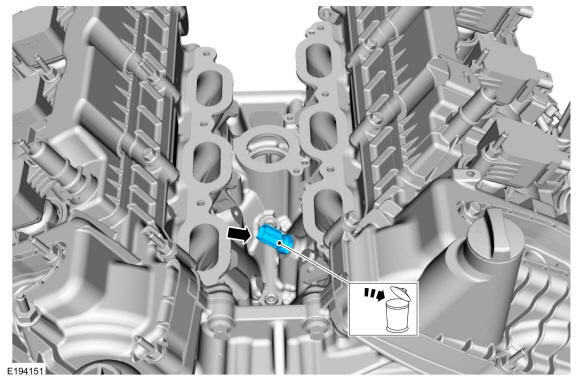

Remove and discard the ECT sensor.
Torque: 142 lb.in (16 Nm)
