Mode Indicator Switch (MIS): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Only vehicles with a mechanical shift transfer case are equipped with a Mode Indication Switch (MIS).
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the mode indicator electrical connector.

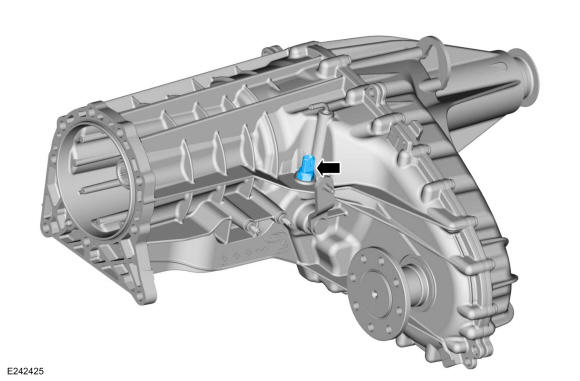

- Remove the MIS.
Torque: 30 lb.ft (41 Nm)
