Ignition Coil-On-Plug: Installation
-
NOTE: When installing cylinder 4 ignition coil, lower coil assembly between the fuel lines. Then rotate counter-clockwise 90-degrees and lower into position making sure boot engages spark plug properly.

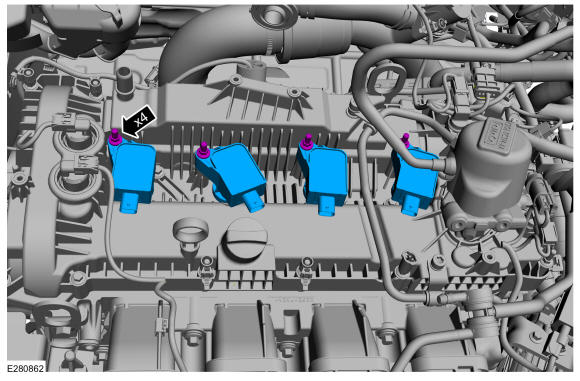

Install the ignition coil-on-plug assemblies, then install and tighten the ignition coil-on-plug retainers.
Torque
: 71 lb.in (8 Nm)
-

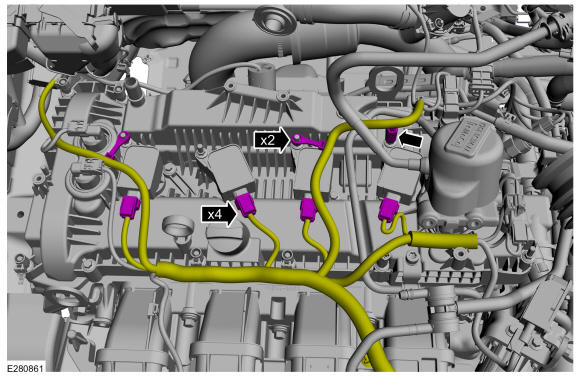

- Attach the wiring harness retainers to the ignition coil-on-plug studbolts.
- Push the wire harness side connector onto the ignition coil-on-plug connector until locked. A clicking sound will be heard when fully seated. Slide the red locking tab (CPA) toward the ignition coil-on-plug until a second clicking sound is heard.
- Install the Air Cleaner Outlet Pipe. Refer to: Air Cleaner Outlet Pipe
