Power Fold Seat Control Switch: Removal

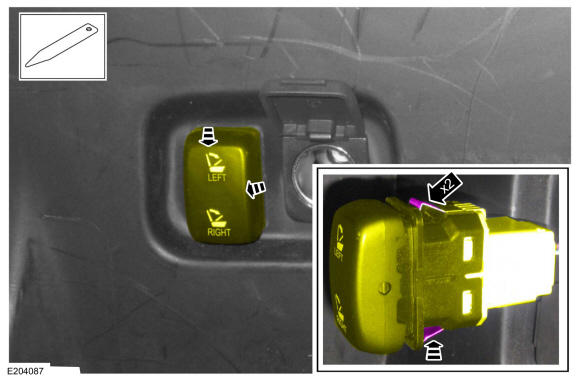

  1. Using an interior trim tool, release the power fold seat control switch locking tabs. Use the General Equipment: Interior Trim Remover
    GFD597857Courtesy of FORD MOTOR COMPANY

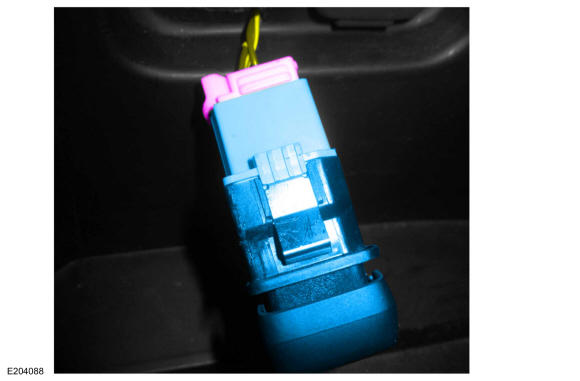

  2. Disconnect the electrical connector and remove the power fold seat control switch.
GFD597858Courtesy of FORD MOTOR COMPANY
