Front Subframe: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Disconnect the battery ground cable anytime the steering gear is being serviced or damage to the steering gear internal power relay may occur resulting in steering gear replacement.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect

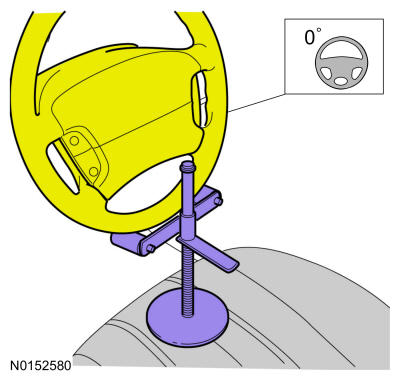

Hold the steering wheel in straight-ahead position. Use the General Equipment: Steering Wheel Holder

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

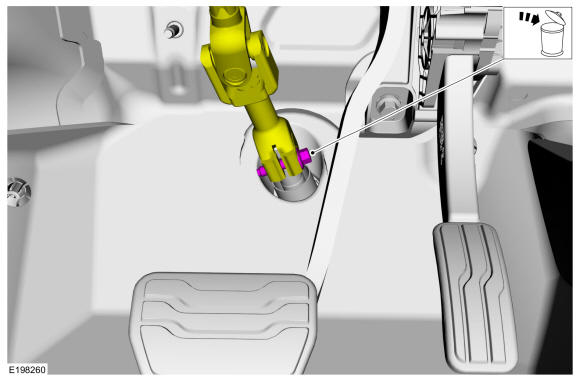

Remove and discard the steering shaft coupler bolt and detach the steering shaft.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

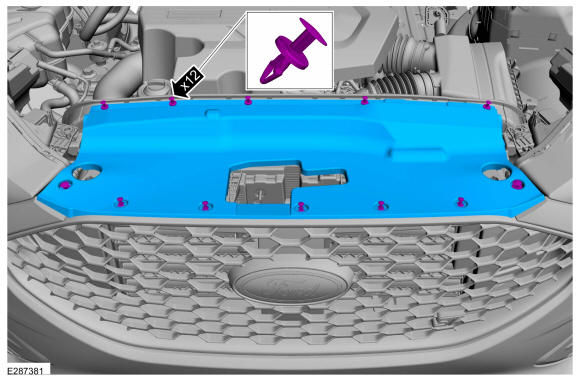

Remove the retainers and the upper air deflector.

Courtesy of FORD MOTOR COMPANY

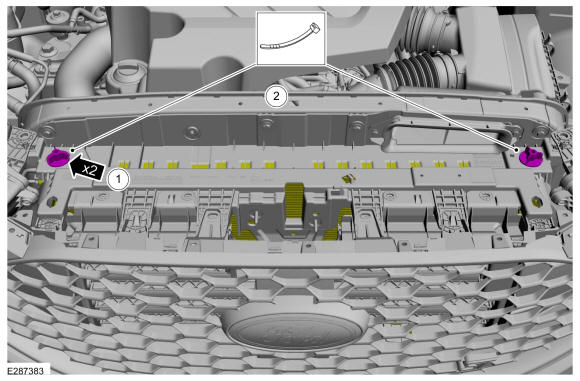

Support the cooling module.
1. Remove the upper cooling module support brackets.
2. Using zip ties or mechanics wire through the upper location holes support the cooling module.
Courtesy of FORD MOTOR COMPANY
Remove the wheels and tires. Refer to: Wheel and Tire

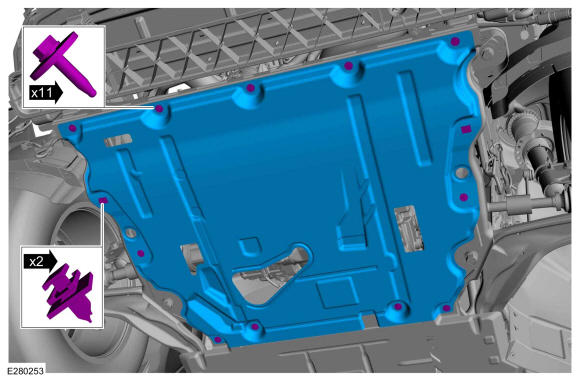

Remove the bolts, the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

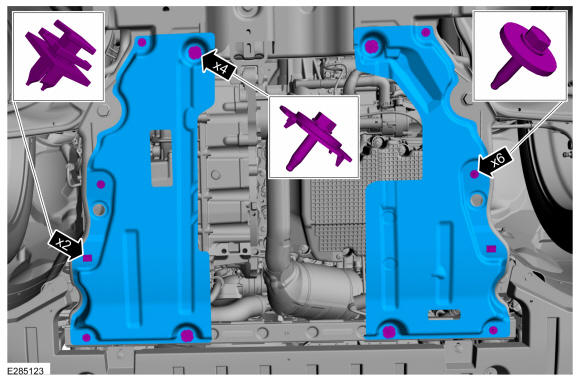

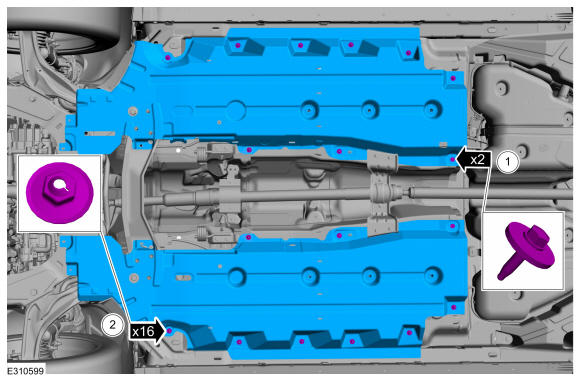

If equipped. Remove the retainers and the dual under body shields.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the center under body shield.

Courtesy of FORD MOTOR COMPANY

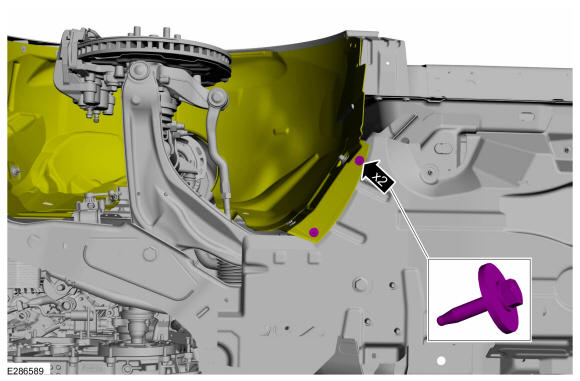

On both side Remove the retainers and separate the fender splash shield

Courtesy of FORD MOTOR COMPANY
Remove the front air deflectors.
1. Remove the bolts.
2. Remove the stamped nuts and the front air deflectors.
Courtesy of FORD MOTOR COMPANY

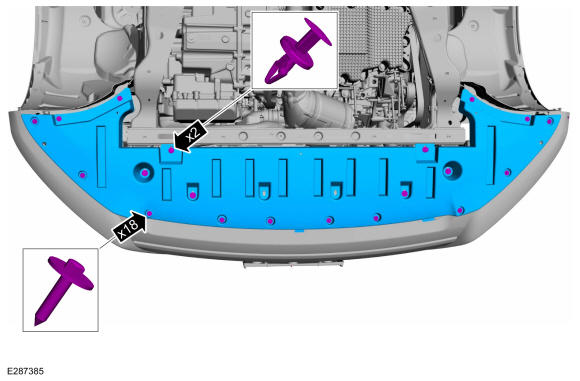

Remove the retainers and the front under body shield.

Courtesy of FORD MOTOR COMPANY

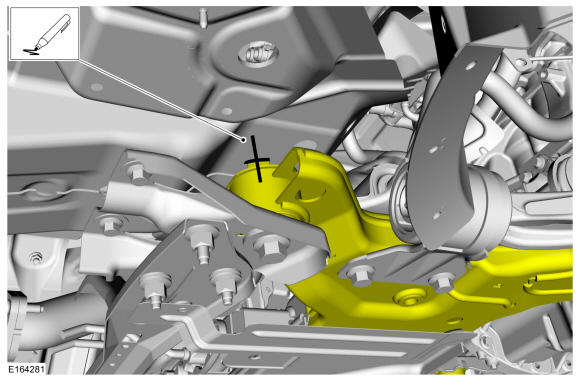

On both sides. Index-mark the subframe for reference during installation.

Courtesy of FORD MOTOR COMPANY

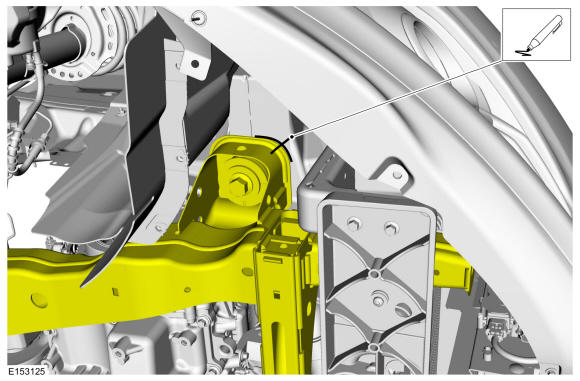

On both sides. Index-mark the subframe for reference during installation.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the radiator core support.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.

NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

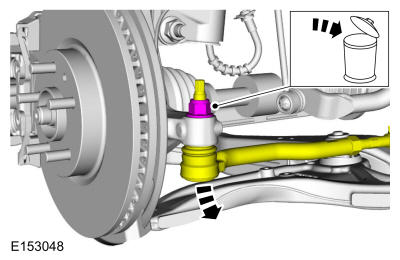

On both sides. Remove and discard the tie rod end nut and separate the tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

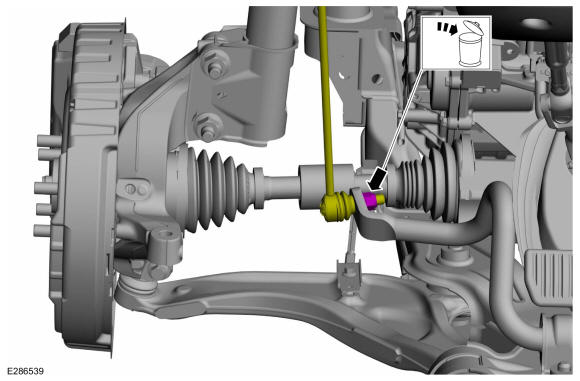

On both sides. Remove and discard the stabilizer bar link lower nut and separate the stabilizer bar link from the stabilizer bar.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

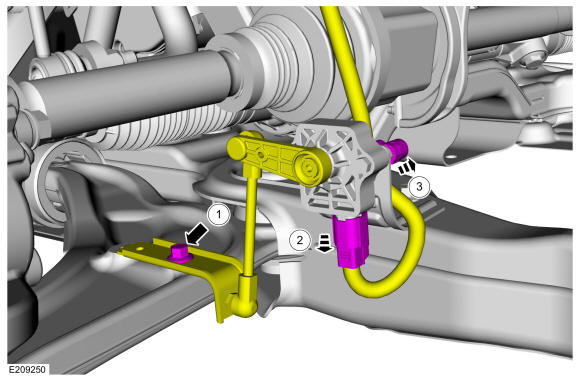

NOTE: The front suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

If equipped
1. Remove the front height sensor arm bracket bolt and position the front height sensor arm bracket aside.
2. Disconnect the front height sensor electrical connector.
3. Unclip the front height sensor wire harness from the front height sensor and position the harness aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

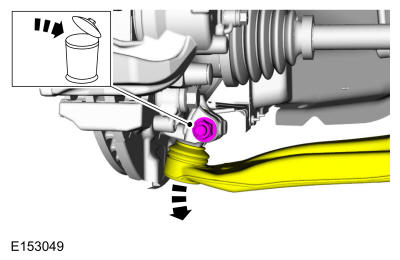

On both sides. Remove and discard the lower ball joint pinch bolt and separate the lower ball joint from the wheel knuckle.

Courtesy of FORD MOTOR COMPANY
NOTE: 2.0L EcoBoost.

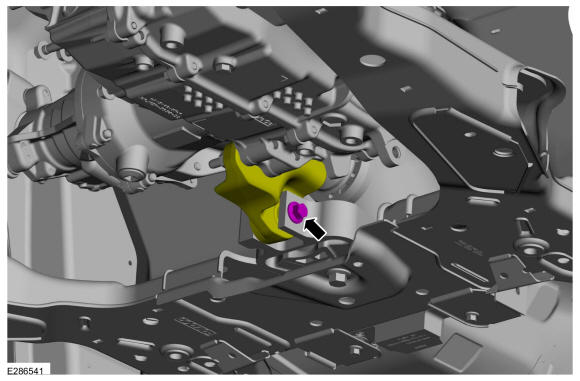

Remove the roll restrictor bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L EcoBoost.

Remove the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe
NOTE: 2.7L EcoBoost.

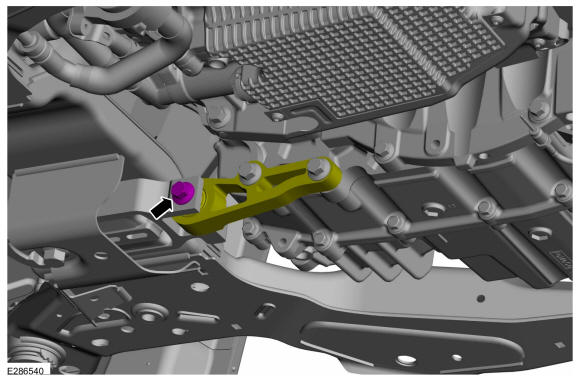

Remove the roll restrictor bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: 2.0L EcoBoost vehicle shown, others similar.
- Detach the wiring harness retainers.
- Remove the nuts and the front crossmember brace.
Courtesy of FORD MOTOR COMPANY
NOTE: 2.0L EcoBoost.

Remove the retainers and the exhaust support bracket.

Courtesy of FORD MOTOR COMPANY
Disconnect the body harness pushpin from the front of the subframe.

Courtesy of FORD MOTOR COMPANY

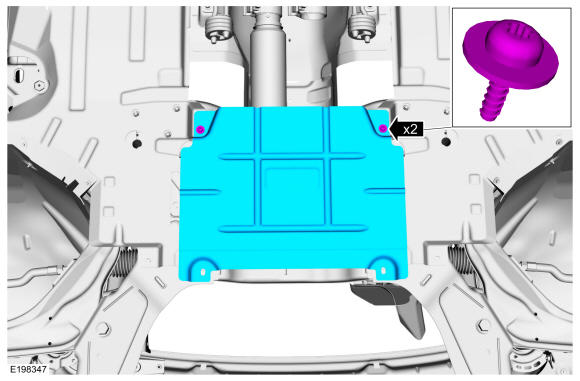

If equipped Remove the retainers and the steering gear heat shield.

Courtesy of FORD MOTOR COMPANY

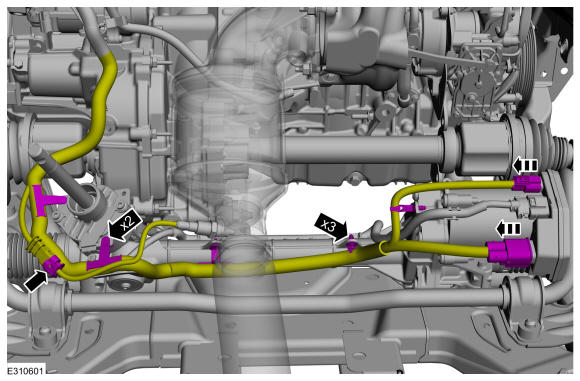

NOTE: 2.0L EcoBoost.
- Disconnect the catalyst monitor sensor connector.
- Disconnect the EPAS electrical connectors and unclip the harness.
Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L EcoBoost.

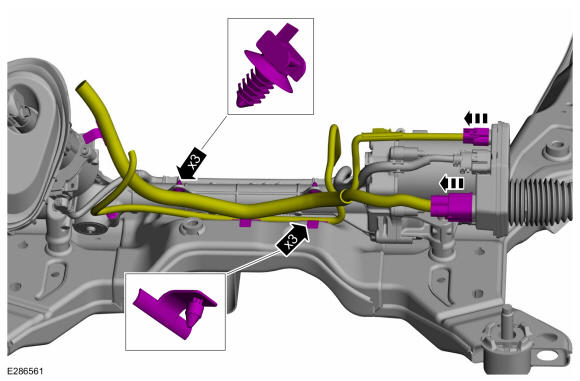

Disconnect the EPAS electrical connectors and unclip the harness.

Courtesy of FORD MOTOR COMPANY
Position the powertrain lift under the subframe. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

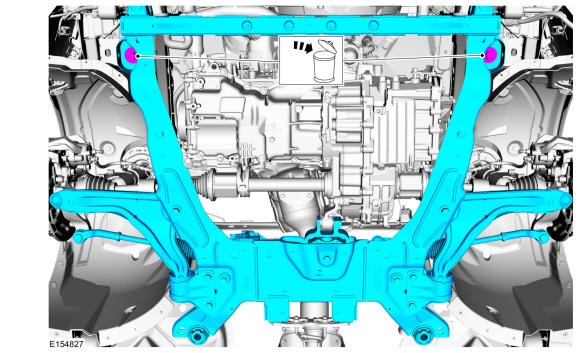

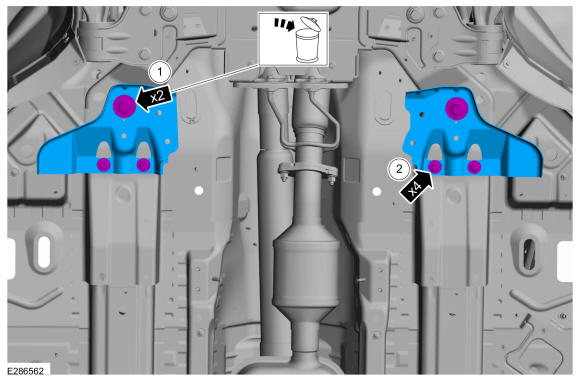

1. Remove and discard the rearward subframe bolts.
2. Remove the bolts and the subframe brackets.
Courtesy of FORD MOTOR COMPANY
Remove and discard the forward subframe bolts.

Courtesy of FORD MOTOR COMPANY

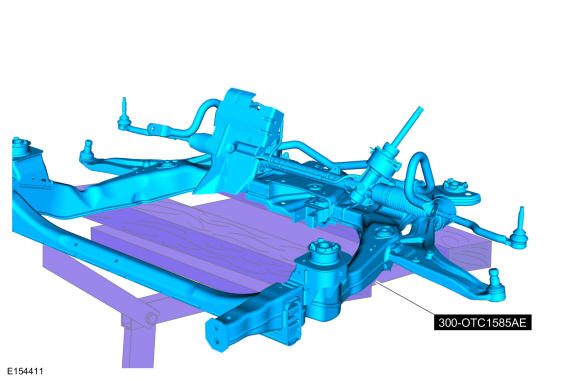

Lower the subframe assembly from the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
