Front Seat Control Switch: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.
  1. Remove the front seat. Refer to Front Seat  .

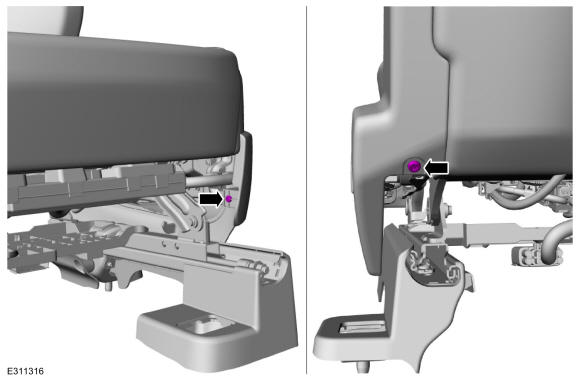

  2. Remove the front seat side shield screws.
    GFD579074Courtesy of FORD MOTOR COMPANY

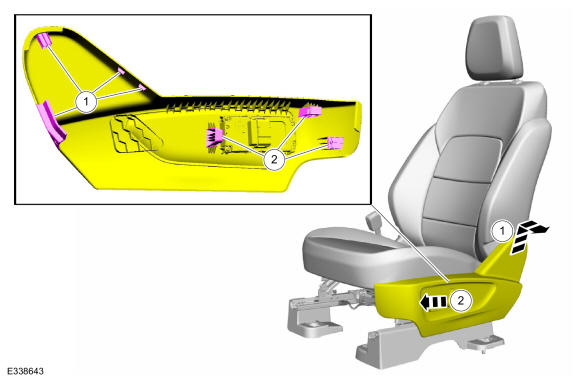

    1. Firmly grasp the front seat side shield, lift up and out, separating the front seat side shield from the recliner bracket.
    2. Slide the front seat side shield forward and separate the front seat side shield from the seat.
    GFD579078Courtesy of FORD MOTOR COMPANY

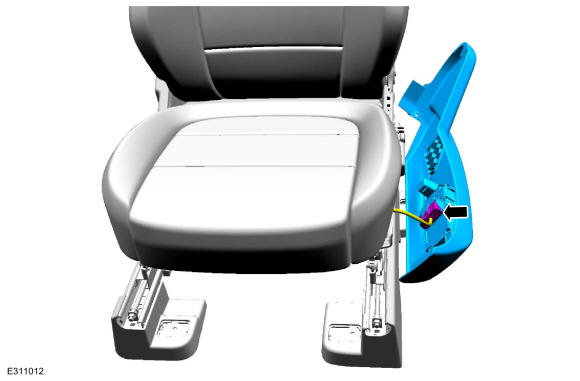

  4. Disconnect the electrical connector and remove the front seat side shield
    GFD579079Courtesy of FORD MOTOR COMPANY

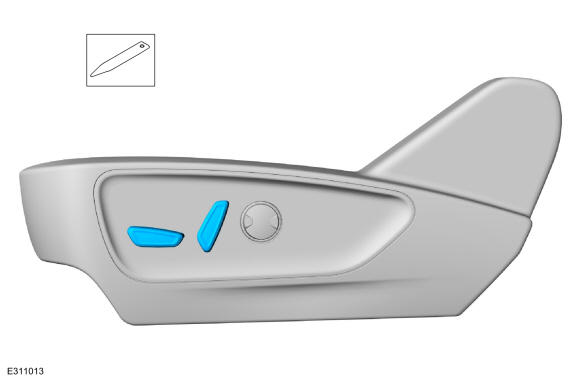

  5. Remove the front seat control switch knob(s).
    GFD579092Courtesy of FORD MOTOR COMPANY

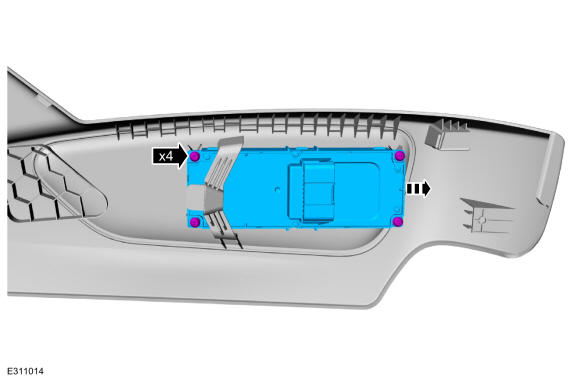

  6. Remove the screws and the front seat control switch.
GFD579093Courtesy of FORD MOTOR COMPANY
