High-Pressure Fuel Pump: Installation

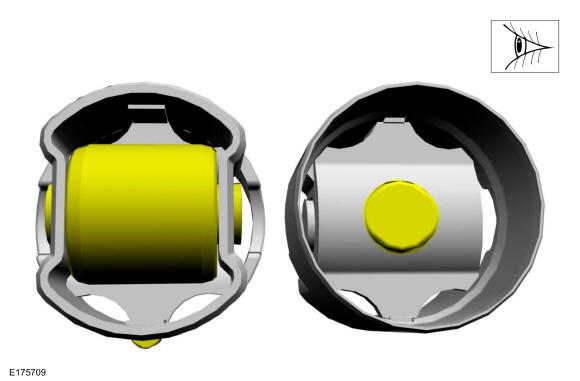

  1. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.
    GFD624976Courtesy of FORD MOTOR COMPANY

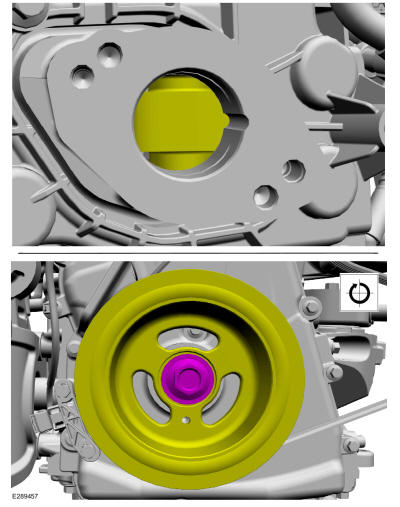

  2. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

    Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump cam lobe is at BDC.

    GFD625365Courtesy of FORD MOTOR COMPANY

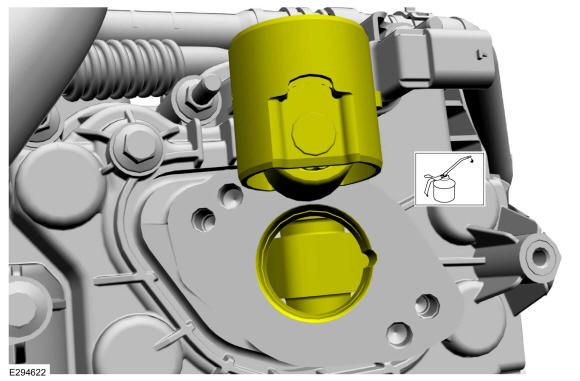

  3. Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet. Refer to: Specifications .
    GFD625366Courtesy of FORD MOTOR COMPANY

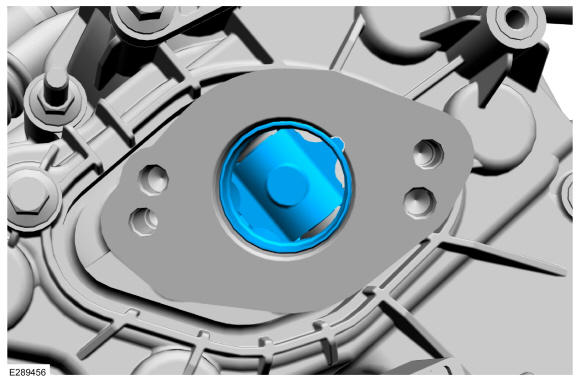

  4. NOTE: The roller tappet's roller goes down towards the camshaft.
    NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

    Install the high-pressure fuel pump roller tappet.

    GFD625364Courtesy of FORD MOTOR COMPANY

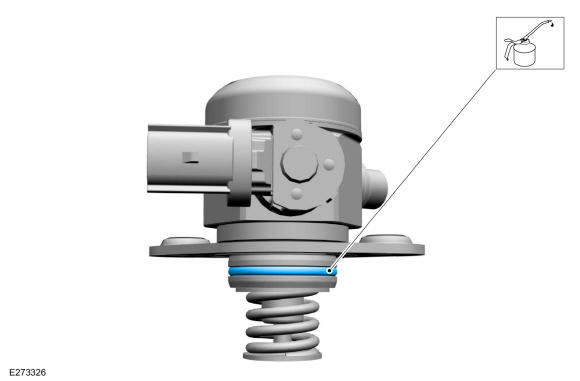

  5. Install a new high-pressure fuel pump O-ring seal, apply clean engine oil to the O-ring seal. Refer to: Specifications .
    GFD625367Courtesy of FORD MOTOR COMPANY

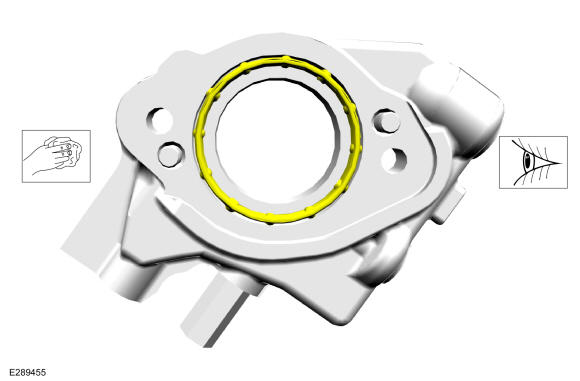

  6. NOTE: Make sure that the mating faces are clean and free of foreign material.

    Inspect the mounting plate gasket, clean and replace the mounting plate gasket as needed.

    GFD625368Courtesy of FORD MOTOR COMPANY

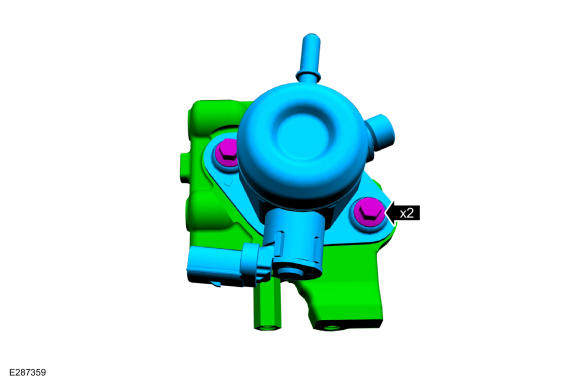

  7. Install the mounting plate and the new bolts to the high-pressure fuel pump.
    GFD625369Courtesy of FORD MOTOR COMPANY

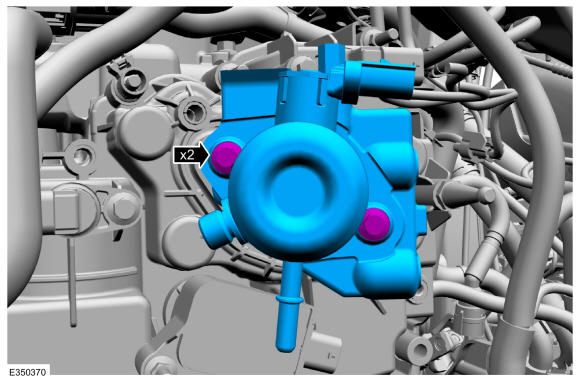

  8. NOTE: Install new high-pressure fuel pump bolts.

    Install the high-pressure fuel pump with the mounting plate with the new high-pressure fuel pump bolts. Alternately tighten each bolt 1/2 of a revolution until seated, then tighten in the following 2 stages.

    Torque: Stage 1: Tighten to: : 89 lb.in (10 Nm) Stage 2: Tighten an additional: : 60 deg.

    GFD625370Courtesy of FORD MOTOR COMPANY

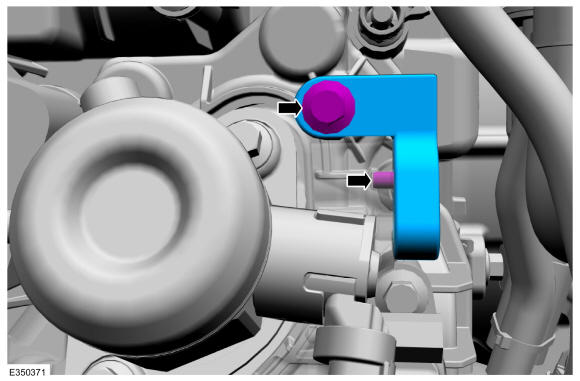

  9. NOTE: Ensure that the alignment pin is properly seated in the mounting plate hole.

    Install the bracket, then install and tighten the bolt.

    Torque: 97 lb.in (11 Nm)

    GFD625371Courtesy of FORD MOTOR COMPANY

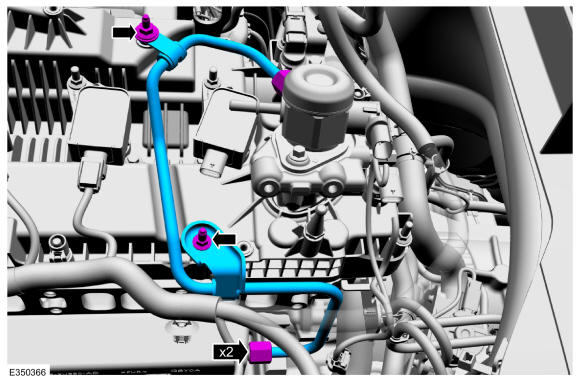

  10. NOTE: Make sure that a new high-pressure fuel tube is installed.

    1. Install the new high-pressure fuel tube and the bracket studbolts, then tighten the high pressure fuel tube flare nuts and the bracket studbolts only finger tight at this stage.
    2. Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas below.
      G00468730Courtesy of FORD MOTOR COMPANY

      Torque: High pressure fuel tube flare nuts, : Stage 1: Tighten to: : 71 lb.in (8 Nm) Stage 2: Tighten to: : 89 lb.in (10 Nm) Stage 3: Tighten an additional: : 38 deg. High-pressure fuel tube bracket studbolts, tighten to: : 97 lb.in (11 Nm)

    GFD625372Courtesy of FORD MOTOR COMPANY

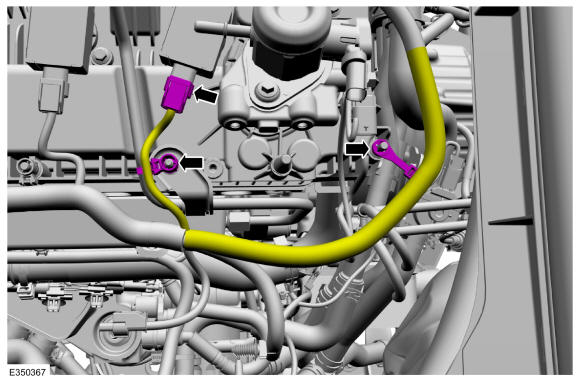

  11. Connect the electrical connector, then attach the wiring harness retainers.
    GFD625358Courtesy of FORD MOTOR COMPANY

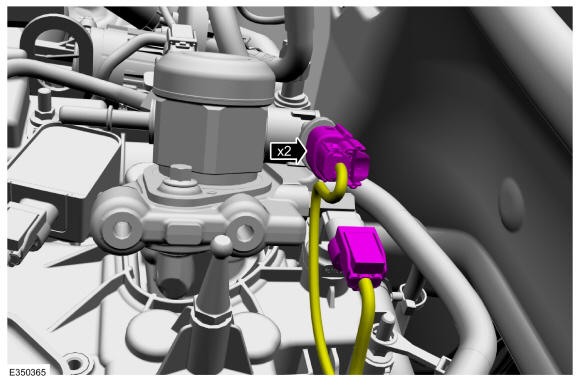

  12. Connect the high-pressure fuel pump and the camshaft position sensor electrical connectors.
    GFD625357Courtesy of FORD MOTOR COMPANY
  13. NOTE: When installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the high-pressure fuel pump noise insulator.

    GFD624587Courtesy of FORD MOTOR COMPANY
    1. Install the high-pressure fuel pump bracket and the bolts finger tight.
    2. Tighten the bolts in the sequence shown.

      Torque: 97 lb.in (11 Nm)

    GFD624588Courtesy of FORD MOTOR COMPANY
  14. Install the lower foam high-pressure fuel pump cover and the retainer.
    GFD624589Courtesy of FORD MOTOR COMPANY
    1. Install the lower plastic high-pressure fuel pump cover and the retainer.
    2. Position the fuel tube and connect the spring lock coupling. Refer to: Spring Lock Couplings .
    GFD624590Courtesy of FORD MOTOR COMPANY

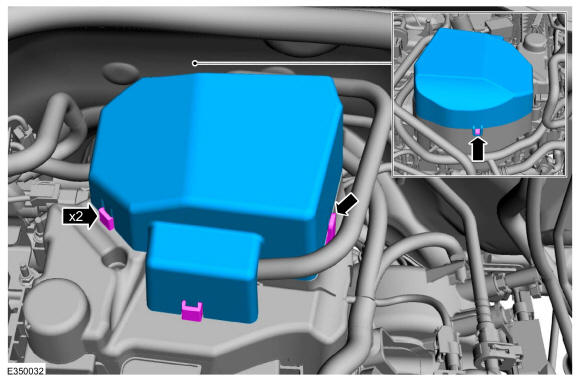

  15. Install the upper plastic and the foam high-pressure fuel pump cover and attach the tabs.
    GFD625354Courtesy of FORD MOTOR COMPANY
    1. Position the wiring harness and attach the retainers.
    2. Attach the wiring harness retainer to the rear engine lift eye.
    GFD624248Courtesy of FORD MOTOR COMPANY
  16. Install the intake manifold. Refer to: Intake Manifold .
  17. Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
  18. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
