Front Door Window Control Switch: Removal

NOTE: 5 door shown in illustration, 3 door similar.

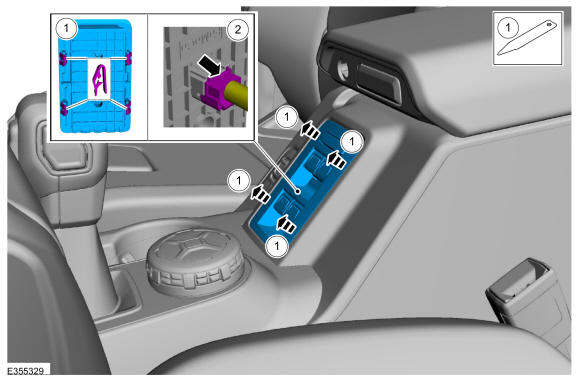

  1. Remove the front door window control switch and bezel as an assembly.

    1. Starting from the top, release the locking tabs from the front door window control switch bezel assembly. Use the General Equipment: Interior Trim Remover
    2. Disconnect the electrical connector and remove the front door window control switch and bezel as an assembly.

    GFD628154Courtesy of FORD MOTOR COMPANY

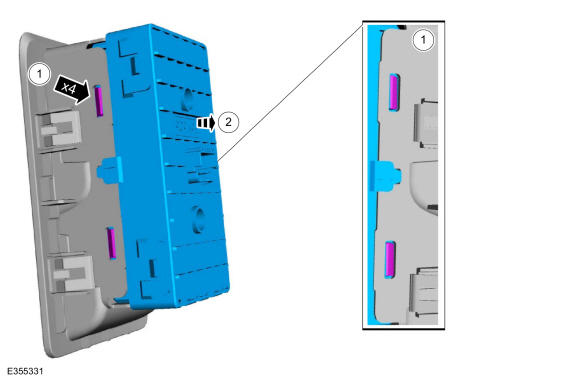

  2. NOTE: This step is only necessary when installing a new component.

    Remove the front door window control switch.

    1. Release the locking tabs from the front door window control switch.
    2. Remove the front door window control switch.

GFD628155Courtesy of FORD MOTOR COMPANY
