Connector Repair Procedures

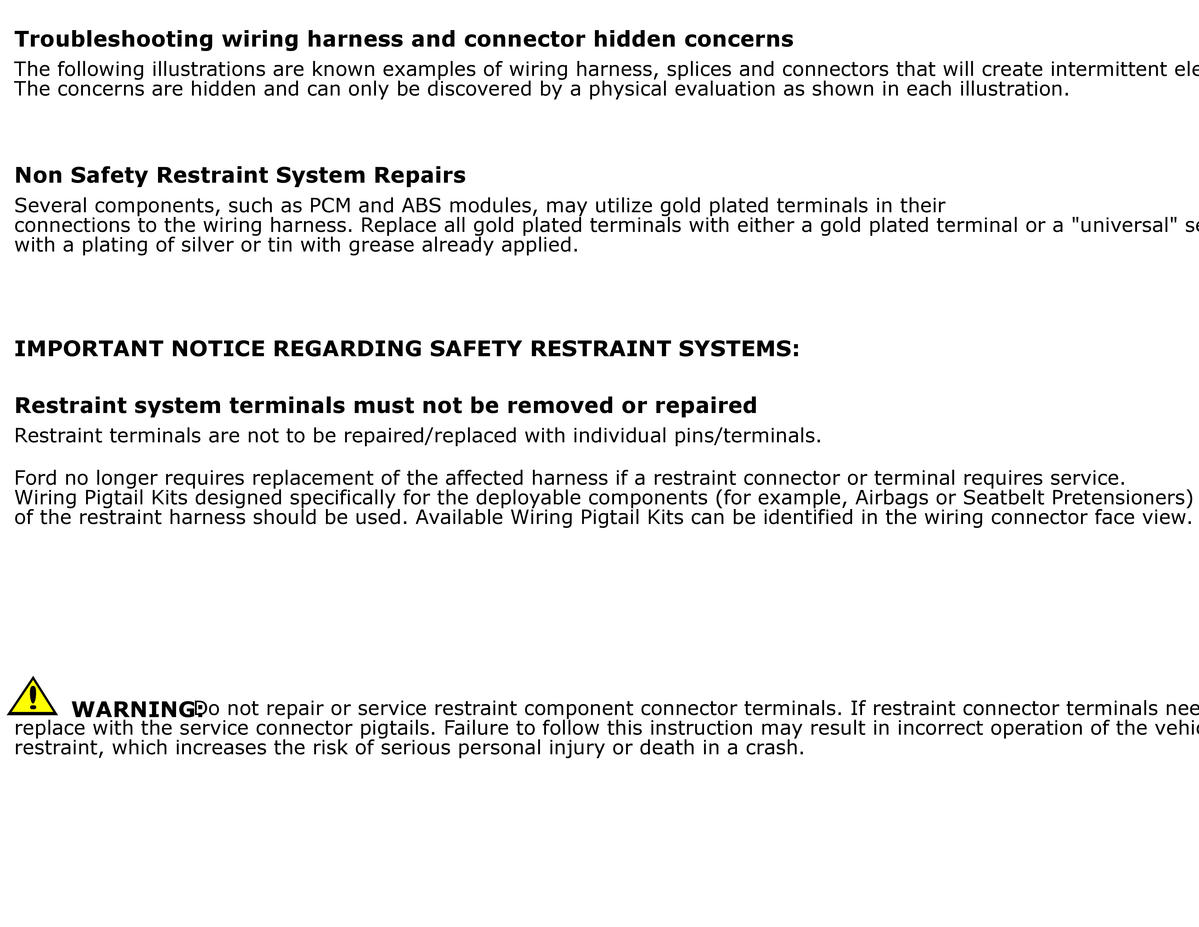

GFDWR77399Courtesy of FORD MOTOR COMPANY

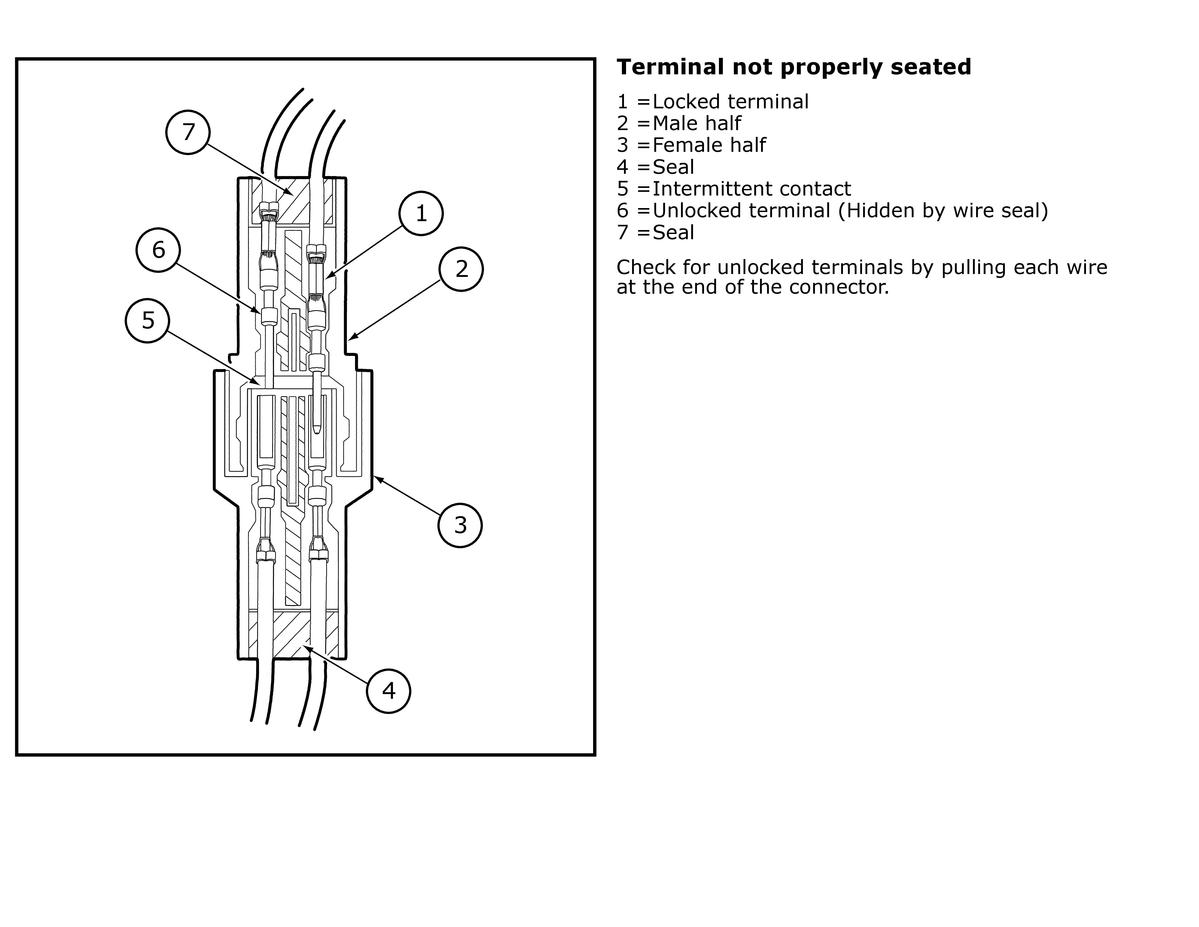

GFDWR77393Courtesy of FORD MOTOR COMPANY

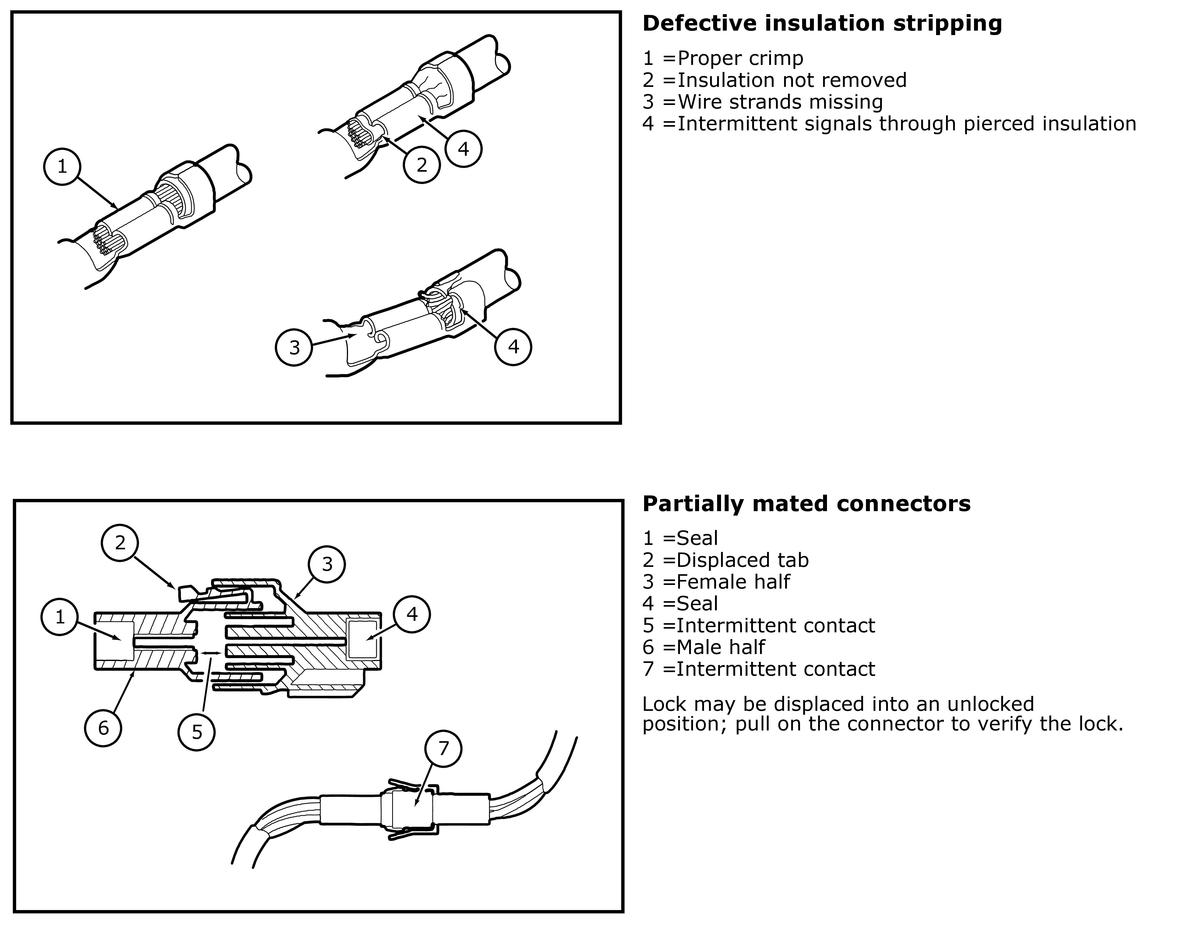

GFDWR77397Courtesy of FORD MOTOR COMPANY

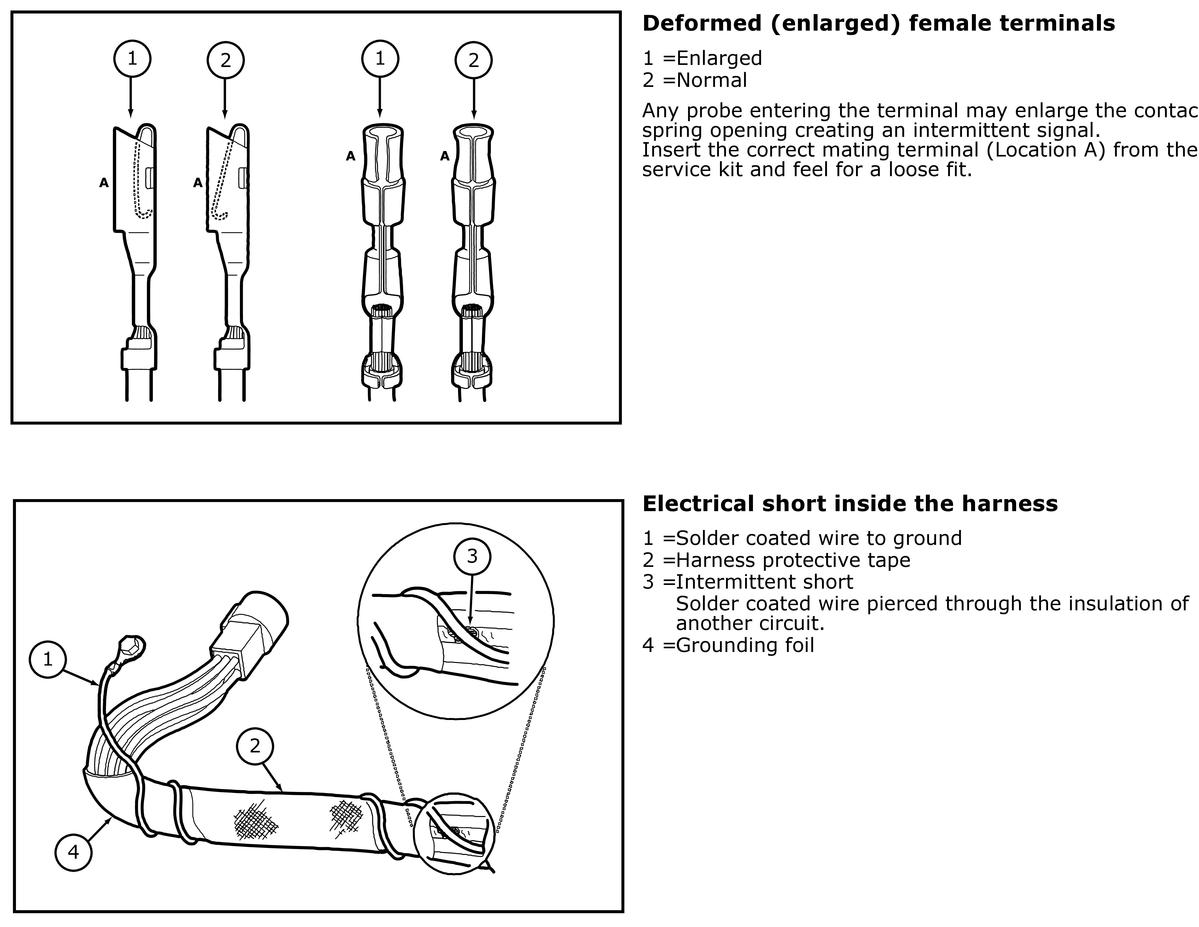

GFDWR77400Courtesy of FORD MOTOR COMPANY

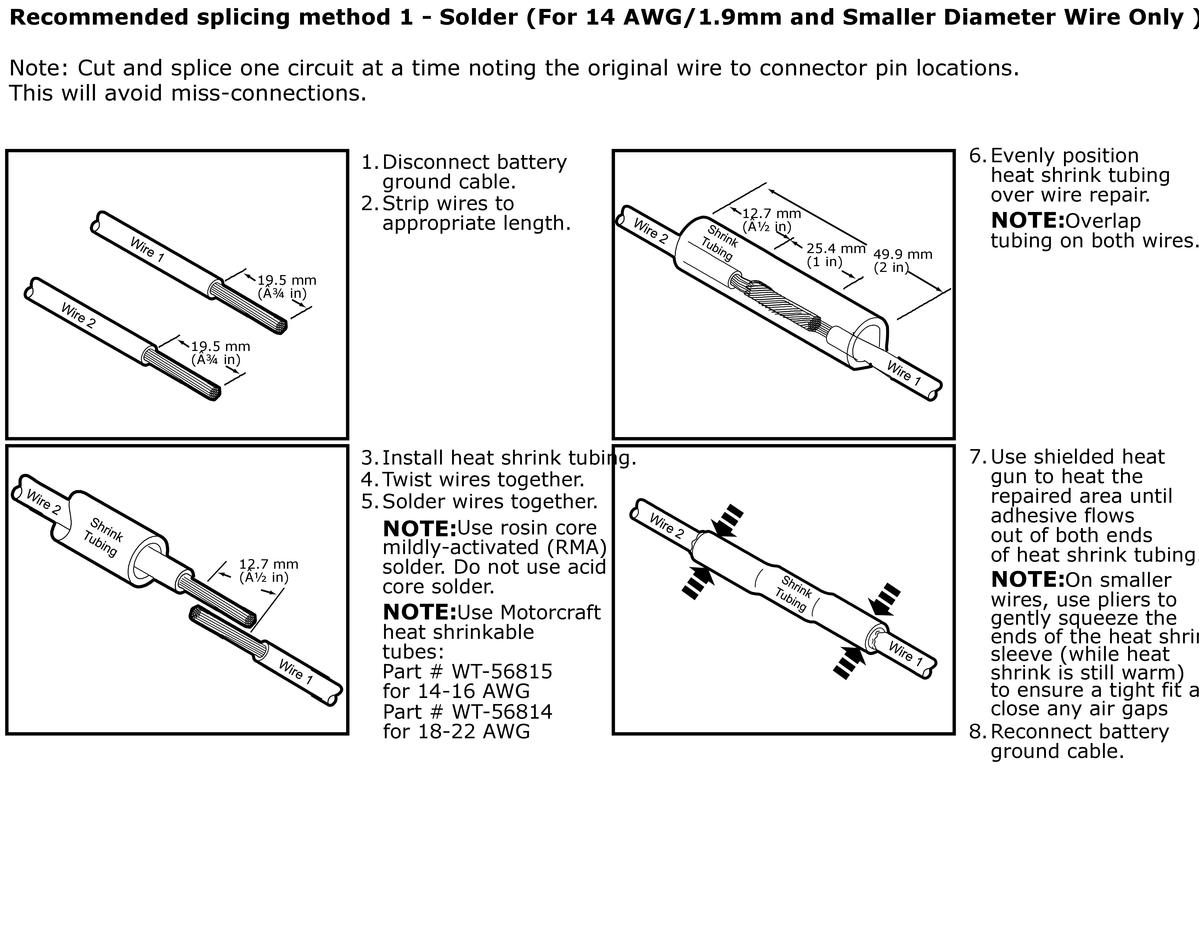

GFDWR77401Courtesy of FORD MOTOR COMPANY

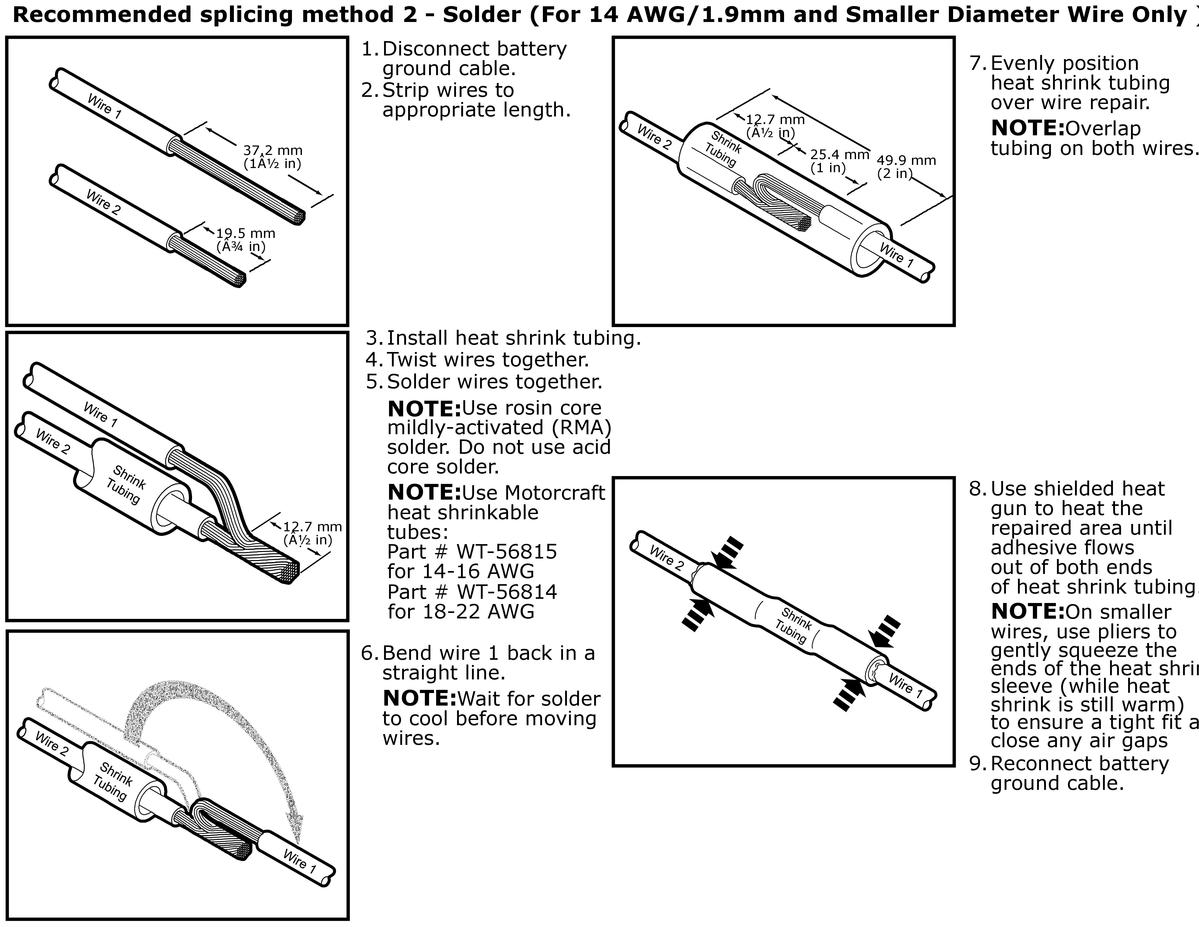

GFDWR77398Courtesy of FORD MOTOR COMPANY

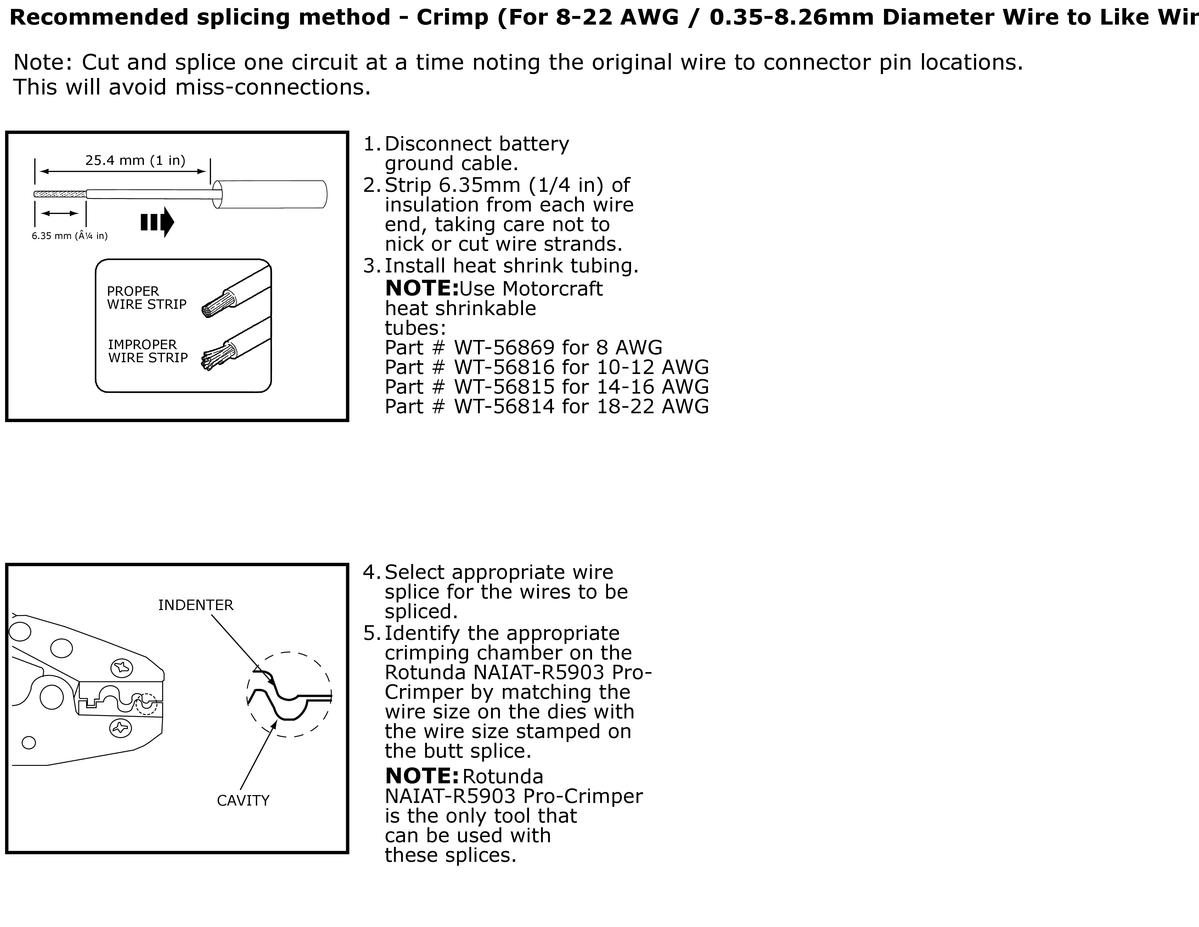

GFDWR77396Courtesy of FORD MOTOR COMPANY

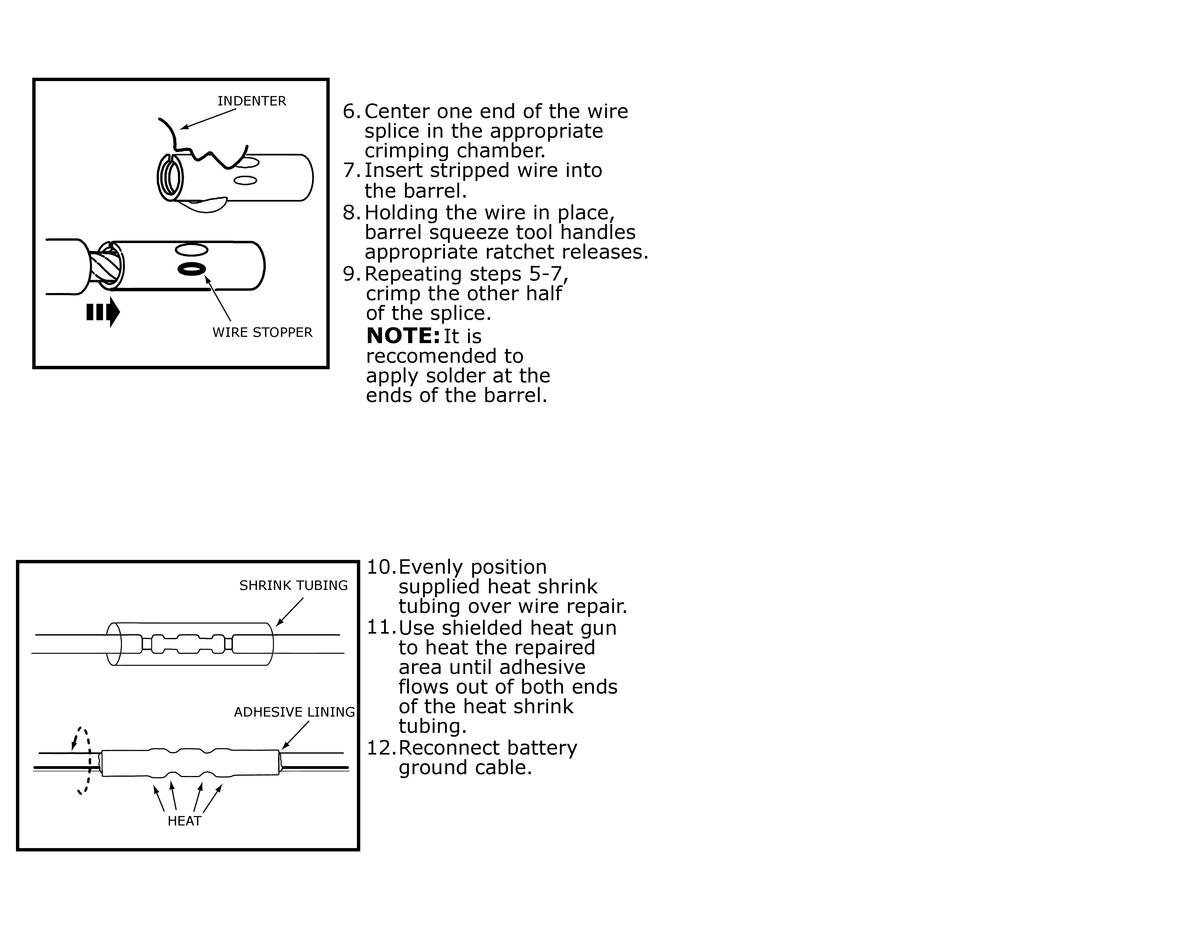

GFDWR77395Courtesy of FORD MOTOR COMPANY

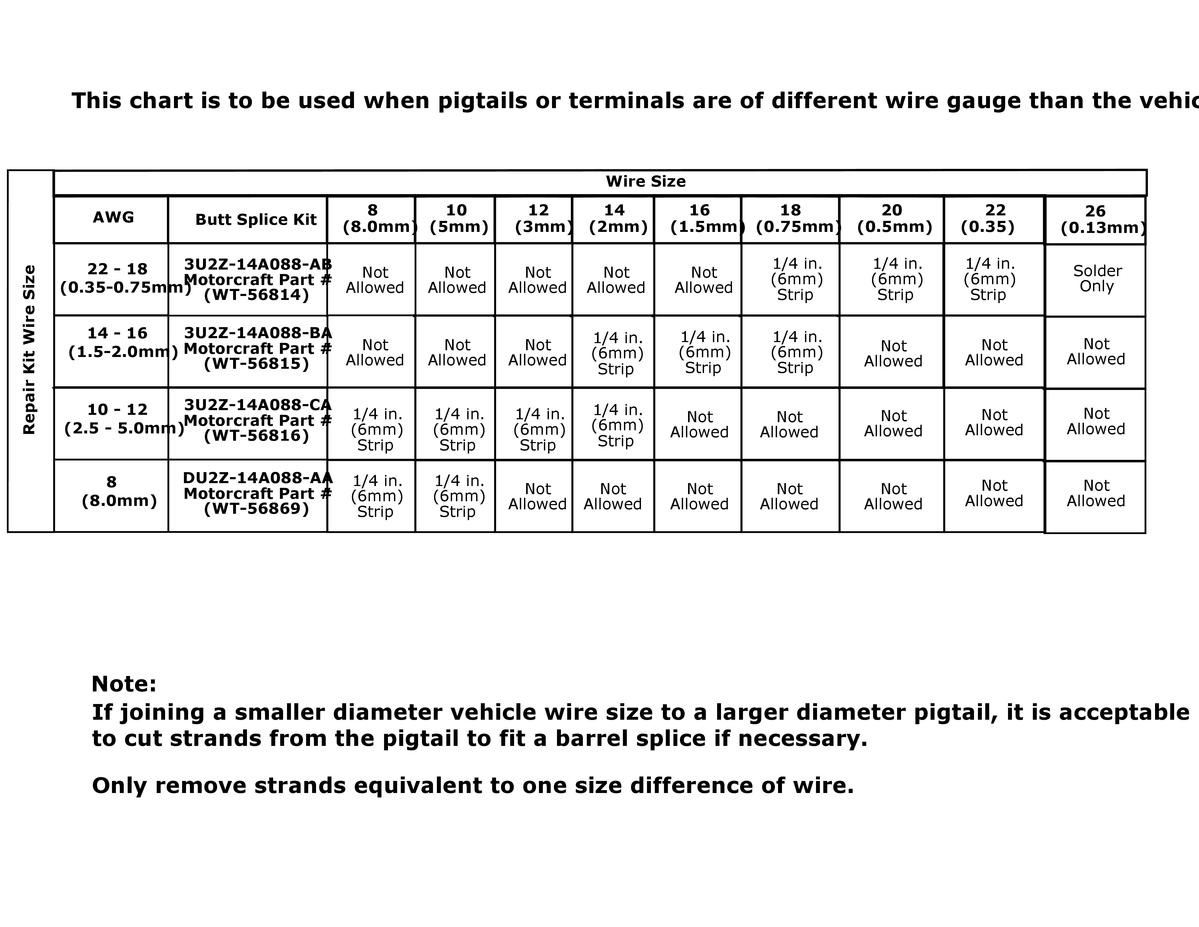

GFDWR77394Courtesy of FORD MOTOR COMPANY
