Anti-Lock Brake System (ABS) Module: Installation

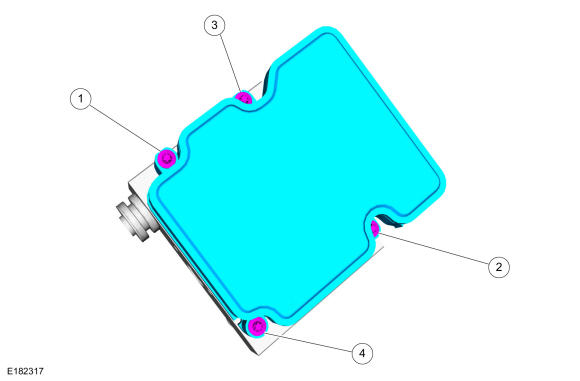

  1. Torque:Stage 1: 18 lb.in (2 Nm) | Stage 2: 27 lb.in (3 Nm)
    GFD447447Courtesy of FORD MOTOR COMPANY
  2. Initialize the Anti-Lock Brake System Module/Stability Assist Module.
  3. Refer to: Brake System Pressure Bleeding .
  4. Carry out the stability assist function test.
