Rear Climate Control Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

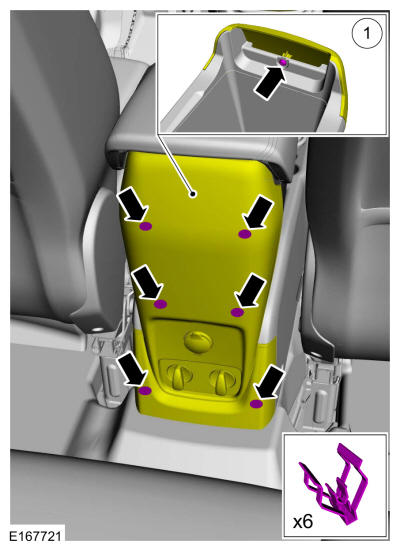

  1. Release the clips and remove the rear floor console finish panel.

    1. Remove the retainer.

    GFD455574Courtesy of FORD MOTOR COMPANY

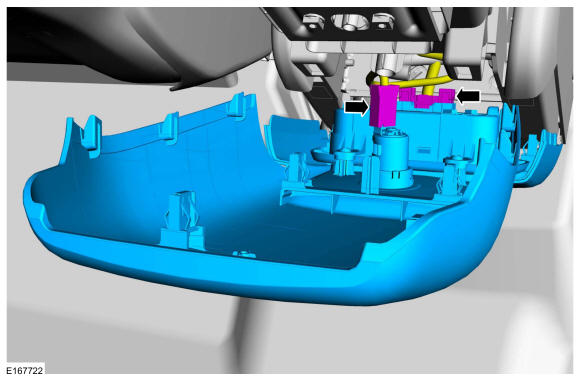

  2. Disconnect the electrical connectors.
    GFD455575Courtesy of FORD MOTOR COMPANY

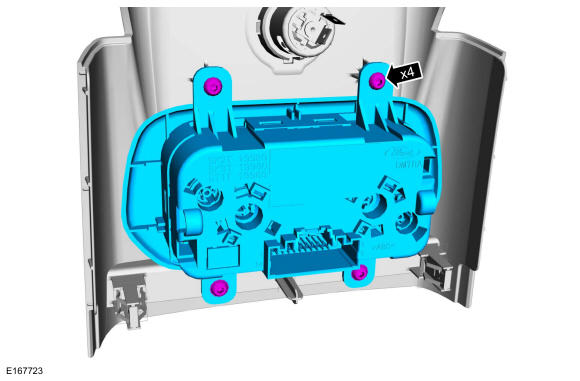

  3. Remove the retainers and the RHVAC control module.
GFD455576Courtesy of FORD MOTOR COMPANY
