RH Engine Sensor Locations

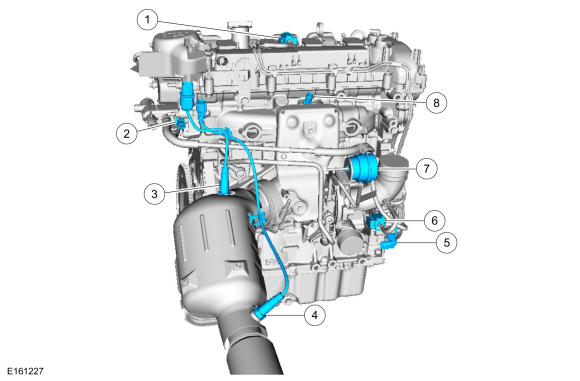

GFD482360Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger bypass valve solenoid
2 ECT sensor
3 HO2S
4 Catalyst Monitor Sensor
5 CKP sensor
6 Turbocharger wastegate regulating valve solenoid
7 Wastegate actuator
8 CHT sensor
