Stability Assist Traction Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the FCDIM. Refer to: Front Control/Display Interface Module (FCDIM) .

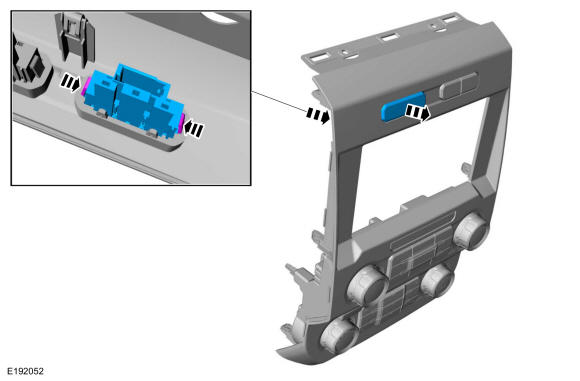

  2. Press the 2 tabs and remove the stability assist/traction control switch.
GFD505189Courtesy of FORD MOTOR COMPANY
