Gateway Module A (GWM): Removal

WARNING: This page is about a different car, the 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the GWM following the on-screen instructions.
Release the trim pin and position aisde the driver side lower cover.

Courtesy of FORD MOTOR COMPANY

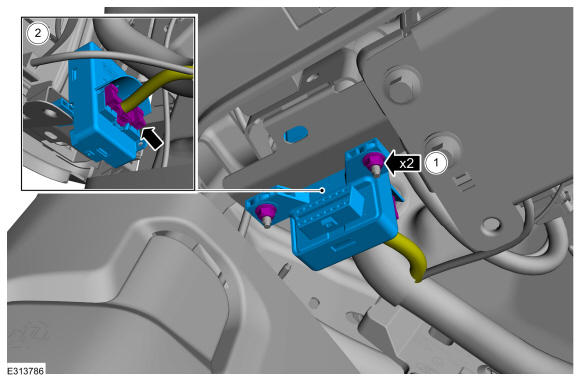

1. Remove the nuts.
  Torque: 28 lb.in (3.2 Nm)
2. Disconnect the electrical connector and remove the GWM.

Courtesy of FORD MOTOR COMPANY
