Fuel Charging and Controls - Component Location

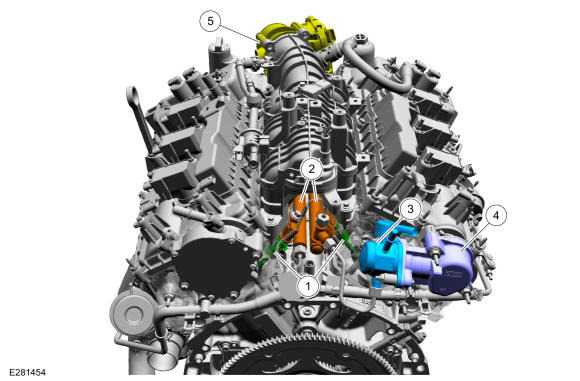

2.7L EcoBoost
| Item | Description |
|---|---|
| 1 | Fuel injectors, Refer to: Fuel Injectors 2.7L EcoBoost . |
| 2 | Fuel rails, Refer to: Fuel Rail 2.7L EcoBoost . |
| 3 | High-pressure fuel pump, Refer to: High-Pressure Fuel Pump 2.7L EcoBoost . |
| 4 | High-pressure fuel pump drive unit, Refer to: High-Pressure Fuel Pump Drive Unit 2.7L EcoBoost . |
| 5 | Throttle body, Refer to: Throttle Body 2.7L EcoBoost . |

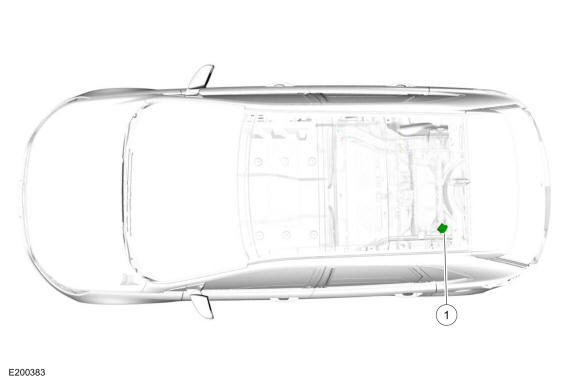

Fuel Pump Driver Module
| Item | Description |
|---|---|
| 1 | Fuel pump driver module, Refer to: Fuel Pump Driver Module (FPDM) 2.7L EcoBoost
. Comments: The fuel pump driver module is attached to the underside of the rear floor above the rear subframe on the left side. |
