Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LHD shown, RHD similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
    NOTE: Make sure the component terminals are not bent or damaged.
  2. NOTE: The steering wheel is removed for clarity.

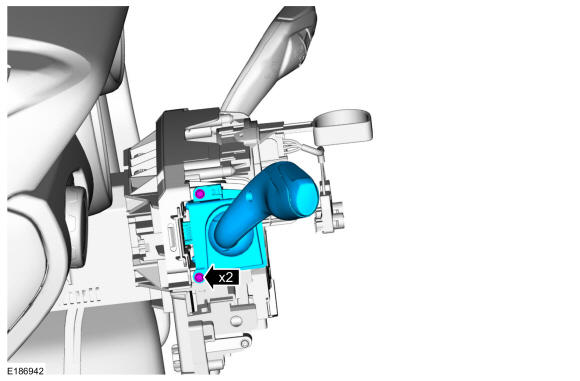

    Remove the retainers and the LH steering column multifunction switch.

    Torque: 9 lb.in (1 Nm)

GFD518807Courtesy of FORD MOTOR COMPANY
