Occupant Classification System (OCS) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use a scan tool to carry out the OCS reset command.
NOTE: The cushion heater mat on a front outboard passenger seat is not serviced separately. If a new cushion heater mat is needed on the front passenger seat, install an OCS service kit equipped with a heater mat. Failure to follow this instruction may result in incorrect operation of the OCS.
NOTE: OCS components (seat cushion foam pad, bladder with OCSM) are calibrated to each other and are serviced as an assembly. The OCS components are not to be installed separately. If a new OCS, OCS component or seat cushion foam pad are needed, a new OCS service kit (seat cushion foam pad, bladder with OCSM) must be installed as an assembly.
NOTE: LH drive passenger seat shown, RH drive passenger seat similar.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front passenger seat. Refer to: Front Seat .

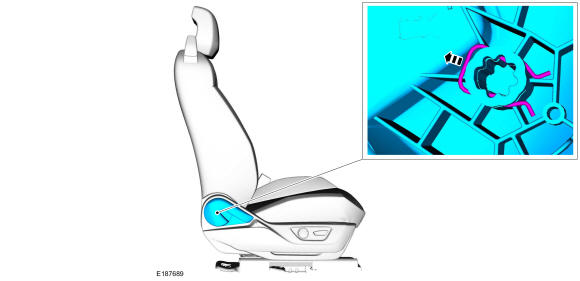

  2. Remove the clip and the recline handle.
    GFD524345Courtesy of FORD MOTOR COMPANY

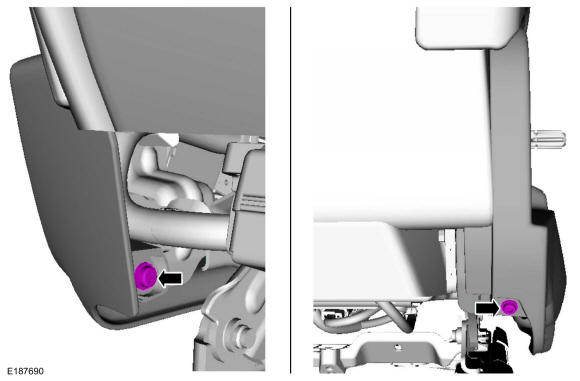

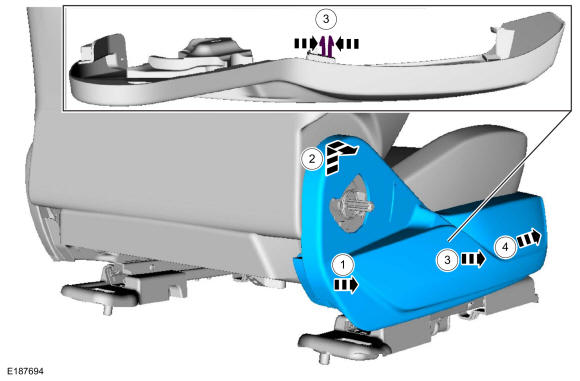

  3. Remove the 2 cushion side shield screws.
    GFD524346Courtesy of FORD MOTOR COMPANY
    1. Pull the rear of the cushion side shield out.
    2. Firmly grasp the cushion side shield, lift up and out, separating the cushion side shield from the recliner bracket.
    3. If equipped with a manual seat track, from underneath, squeeze the retainers together and pull out on the cushion side shield.
    4. Slide the cushion side shield forward and for a manual seat track, remove the cushion side shield.
    GFD524347Courtesy of FORD MOTOR COMPANY

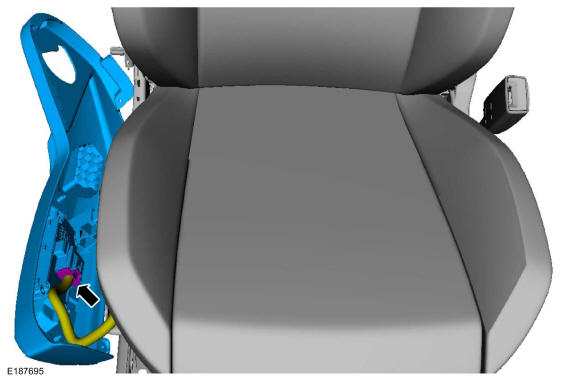

  4. If equipped. Disconnect the seat control switch electrical connector and remove the cushion side shield.
    GFD524348Courtesy of FORD MOTOR COMPANY
  5. NOTE: Seat backrest blower motor with snorkel shown.

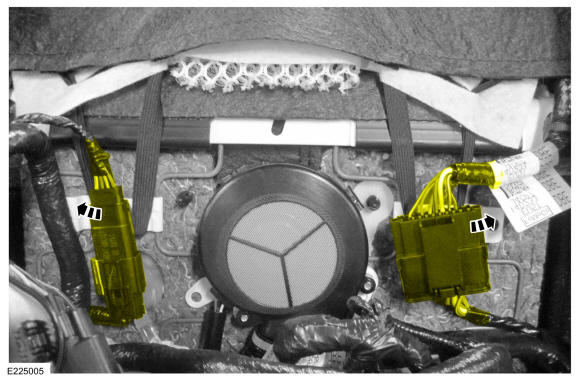

    Release the electrical connector retainers and position the wire harnesses aside.

    GFD524349Courtesy of FORD MOTOR COMPANY

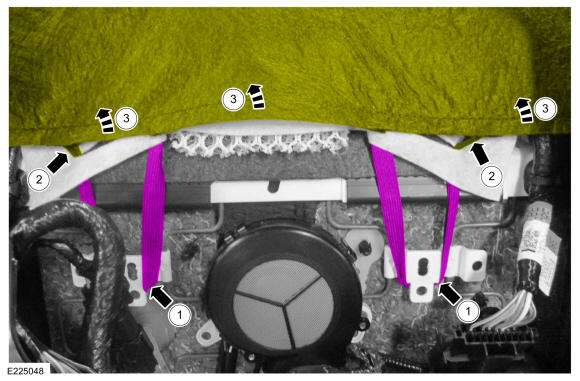

  6. NOTE: Seat backrest blower motor with snorkel shown.

    Position the backrest cover.

    1. Detach the backrest cover straps.
    2. If equipped. Route the backrest cover straps out through the backrest blower motor snorkel.
    3. Position the backrest cover aside.

    GFD524350Courtesy of FORD MOTOR COMPANY
  7. NOTE: Using excessive force when bending the bracket tab can damage the OCS sensor housing.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

    Disconnect the electrical connector, bend the bracket tab away and slide the OCS sensor off the bracket.

    GFD524351Courtesy of FORD MOTOR COMPANY

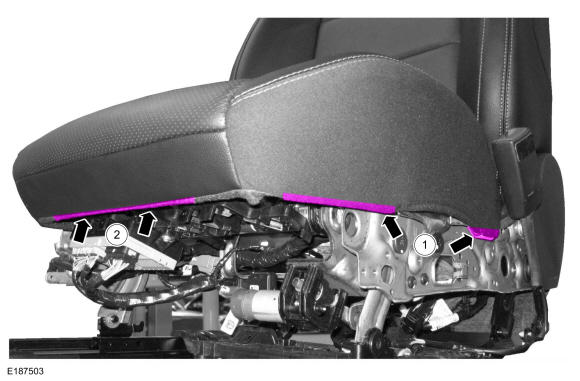

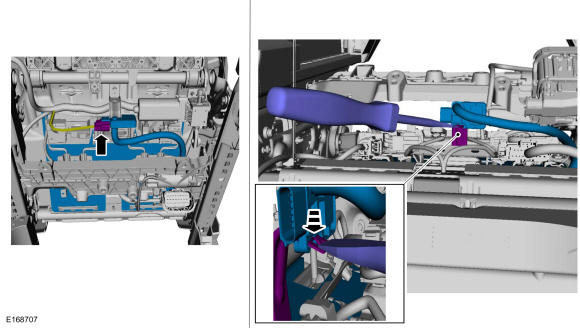

    1. On both sides. Detach the cushion cover J-clips.
    2. Detach the cushion cover J-clip.
    GFD524352Courtesy of FORD MOTOR COMPANY

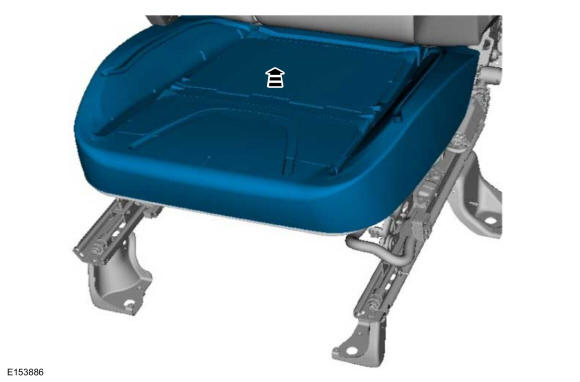

  8. If equipped with OE (original equipment) OCS, remove the cushion foam pad and cover.
    GFD524353Courtesy of FORD MOTOR COMPANY
  9. NOTE: Typical OE OCS shown, service kit similar.

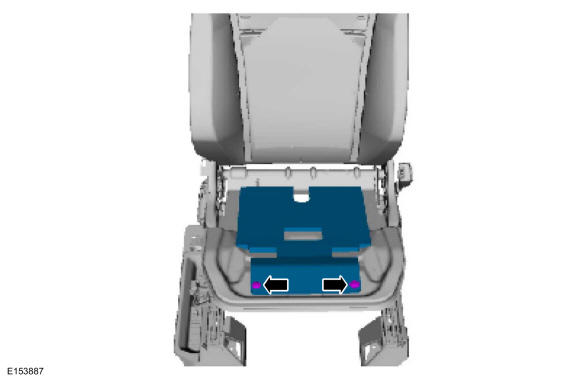

    Remove the 2 pin-type retainers.

    GFD524354Courtesy of FORD MOTOR COMPANY
  10. NOTE: Note the location of the OCS hose as it passes through the seat springs for proper installation.

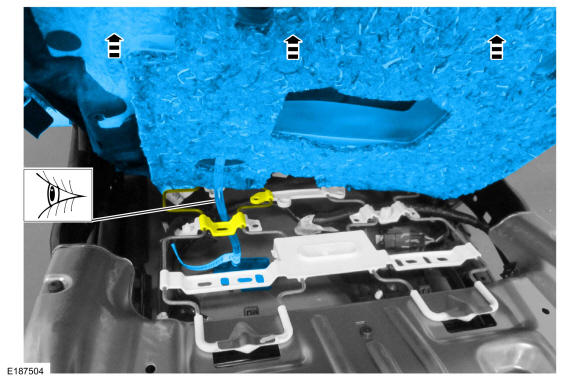

    Route out the OCS hose and sensor from between the seat cushion support wires.

    GFD524355Courtesy of FORD MOTOR COMPANY
  11. NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.
    NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

    Remove the seat cushion cover.

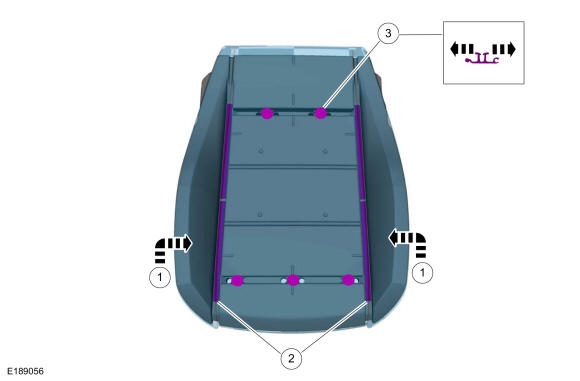

    1. Invert the seat cushion cover.
    2. Release hook-and-loop strips.
    3. Release the hook and arrows.

GFD524356Courtesy of FORD MOTOR COMPANY
