Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

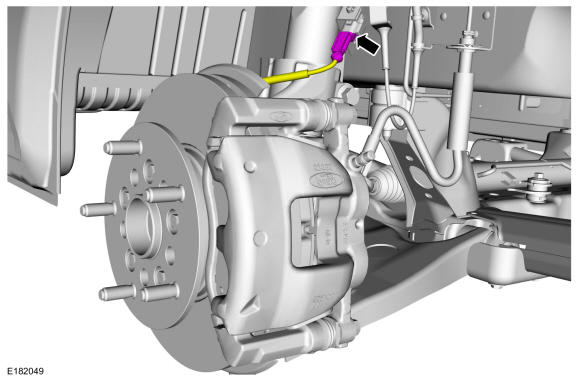

  2. Disconnect the front wheel speed sensor electrical connector.
    GFD346900Courtesy of FORD MOTOR COMPANY

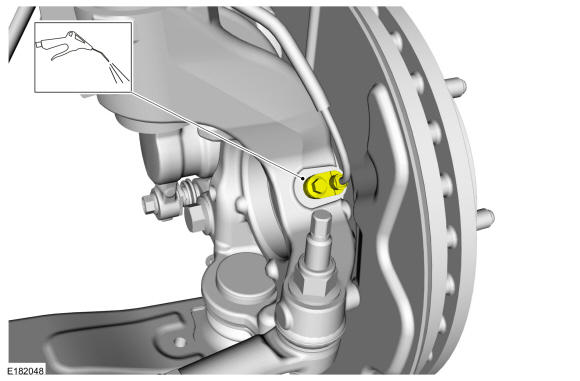

  3. Using compressed air, clean the area surrounding the front wheel speed sensor.
    GFD346901Courtesy of FORD MOTOR COMPANY

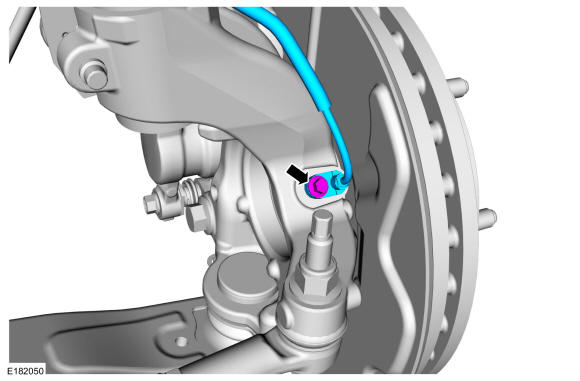

  4. Remove the bolt and the front wheel speed sensor.

    Torque: 97 lb.in (11 Nm)

GFD346902Courtesy of FORD MOTOR COMPANY
