Cruise-Control Module (C-CM): Removal
NOTE:
The vertical and horizontal alignment procedures need to be carried out to align the sensor.

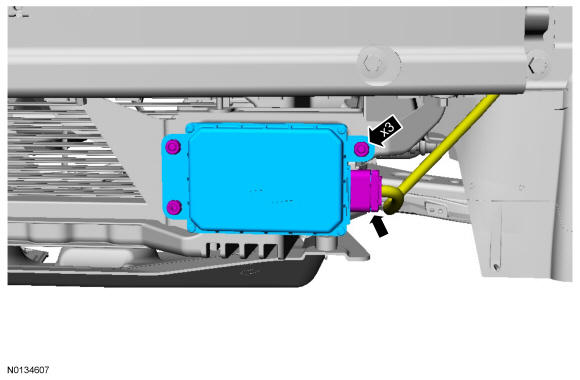

Cruise-Control Module (C-CM) or bracket
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking And Lifting .
- Remove the front bumper cover. For additional information, refer to Bumpers .
-
NOTE: Gently pry to release the C-CM from the retaining studs
-
NOTE: If one plastic grommet is damaged C-CM, a new grommet should be installed.

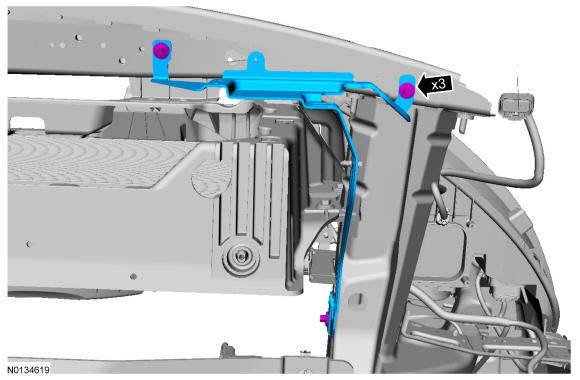

Bracket
