Selector Lever Bezel: Removal

NOTE: Removal steps in this procedure may contain installation details.

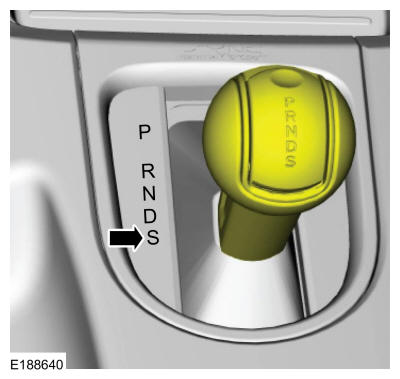

  1. Position the shifter in the S position.
    GFD390314Courtesy of FORD MOTOR COMPANY
  2. Starting from the front corners, carefully pry up the bezel and position it out of the way.
    GFD390304Courtesy of FORD MOTOR COMPANY
  3. Disconnect the electrical connector.
    GFD390305Courtesy of FORD MOTOR COMPANY

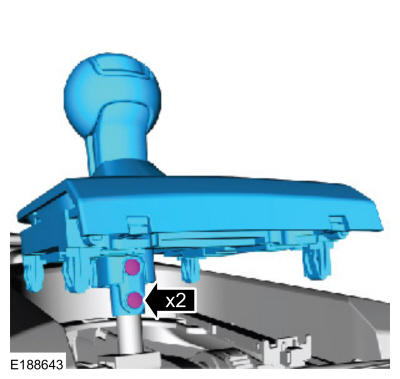

  4. Remove the screws and the shifter knob, boot and bezel as an assembly.
    GFD390315Courtesy of FORD MOTOR COMPANY

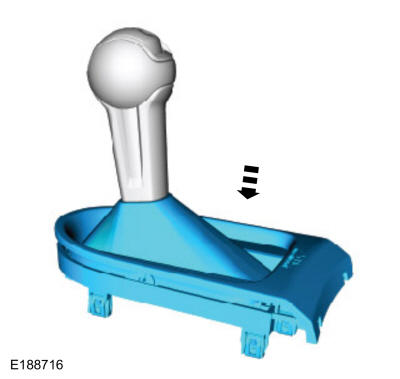

  5. Remove the boot and bezel from the shifter knob.
GFD390316Courtesy of FORD MOTOR COMPANY
