Hydraulic Control Unit (HCU): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The HCU and ABS module are serviced as an assembly.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

If installing a new HCU/ ABS module, using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

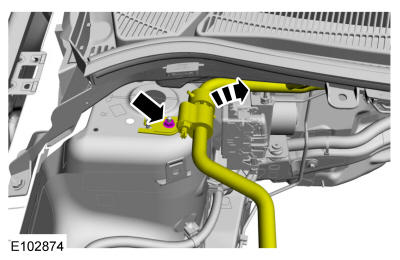

If equipped. Remove the nut and position the evaporator outlet line bracket off of the stud.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

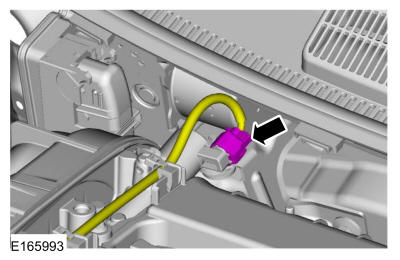

If equipped. Disconnect the VCT oil control solenoid electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

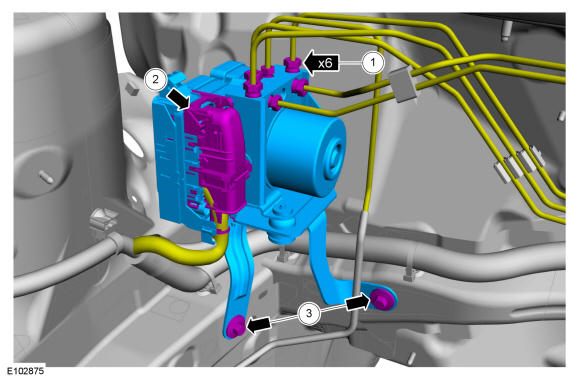

1. Disconnect the brake tube fittings.
  Torque: 159 lb.in (18 Nm)
2. Disconnect the ABS module electrical connector.
3. Remove the bolts and HCU.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY

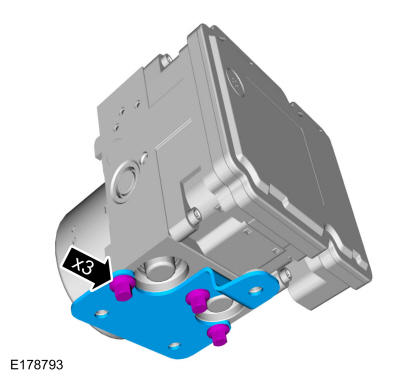

Remove the bolts and the HCU body bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

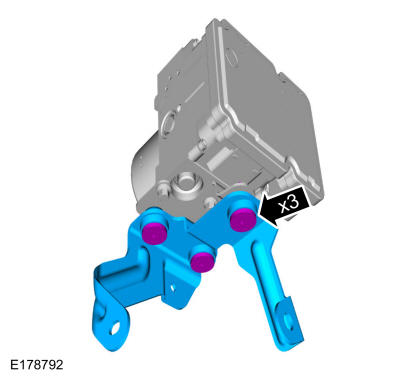

Remove the bolts and the HCU bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
