Power Fold Seat Control Switch: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

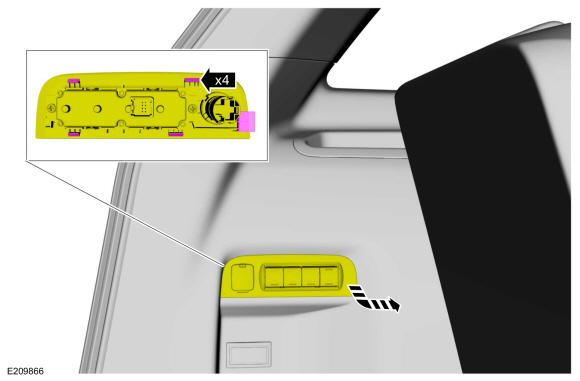

  1. Release the tabs and pull the seat control switch bezel out of the loadspace trim panel.
    GFD417899Courtesy of FORD MOTOR COMPANY

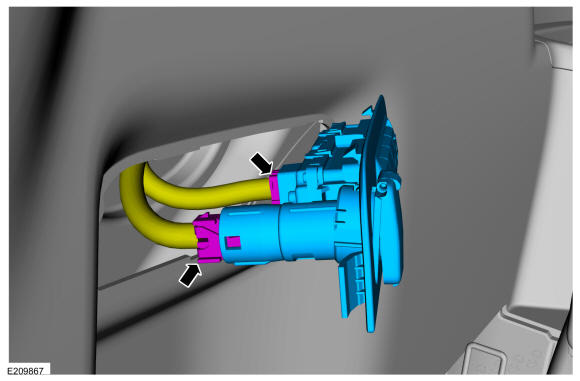

  2. Disconnect the electrical connectors and remove switch bezel.
    GFD417900Courtesy of FORD MOTOR COMPANY

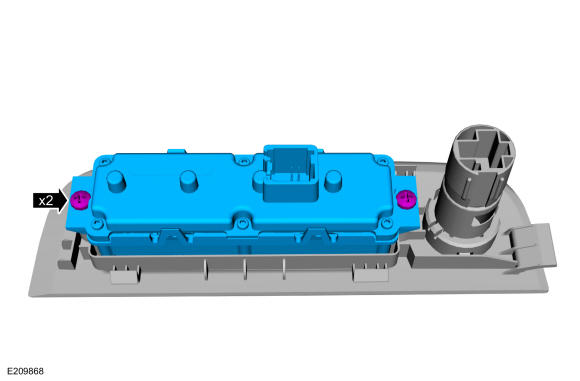

  3. Remove the screws and the seat control switch.
GFD417901Courtesy of FORD MOTOR COMPANY
