Windshield Washer Fluid Level Sensor: Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

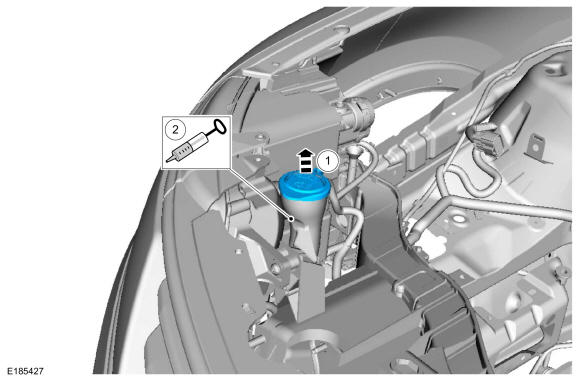

    1. Remove the windshield washer reservoir cap.
    2. Siphon out the washer fluid.
    GFD185679Courtesy of FORD MOTOR COMPANY
  2. Remove the RH fender splash shield. Refer to: Fender Splash Shield .

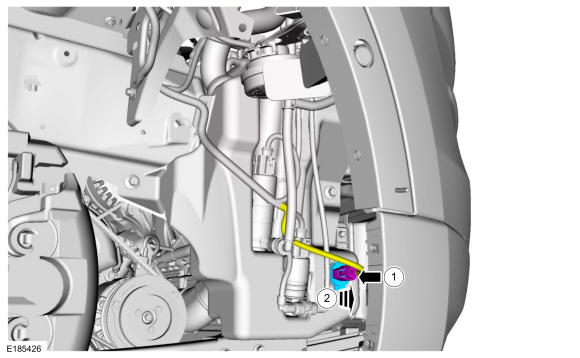

    1. Disconnect the electrical connector.
    2. NOTE: Be prepared to collect escaping fluid.

      Remove the windshield washer fluid level sensor.

      GFD185680Courtesy of FORD MOTOR COMPANY
