Head Up Display (HUD) Module: Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the defrost vent trim panel. Refer to: Defrost Vent Trim Panel .

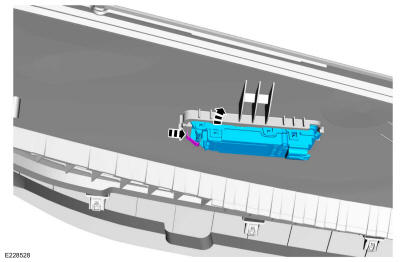

  2. Release the tab and remove the HUD.
GFD185054Courtesy of FORD MOTOR COMPANY
