Fuel Rail: Installation

NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: Make sure that new fuel injector O-ring seals and new fuel injector retainer clips are installed.

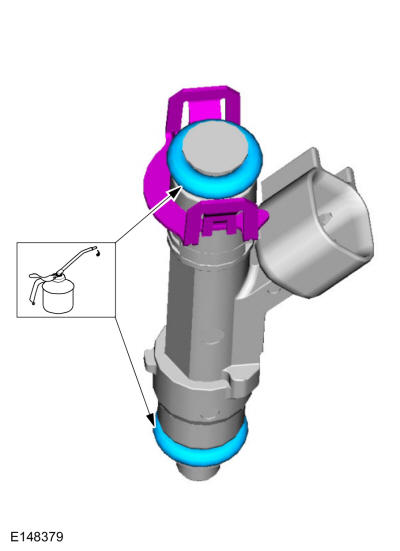

Install the new fuel injector O-ring seals and the fuel injector clips. Lubricate the new O-rings with clean engine oil.

Material

: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
