High-Pressure Fuel Pump: Installation

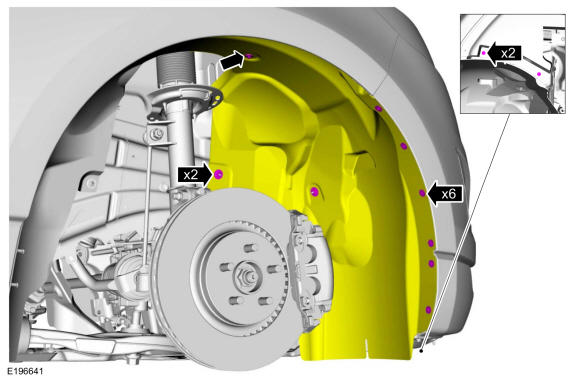

Remove the fasteners and position the fender splash shield aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

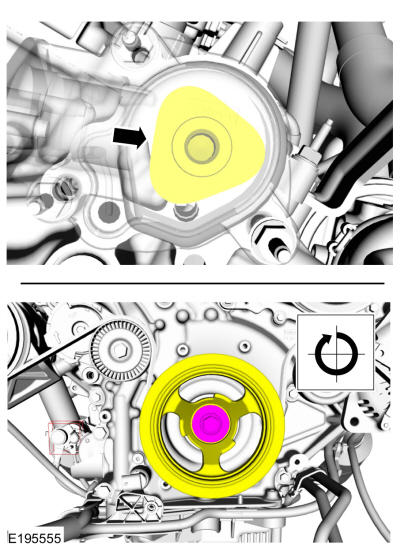

Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY
Position the fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY

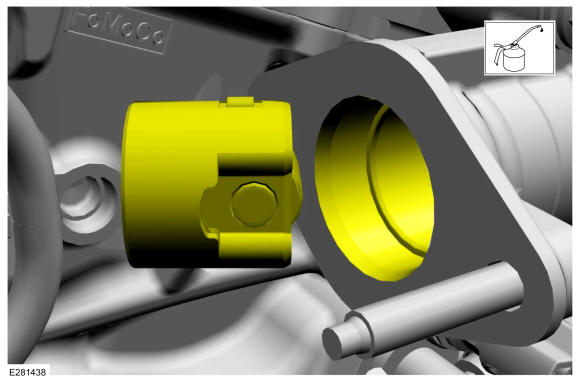

Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the roller tappet.

Courtesy of FORD MOTOR COMPANY

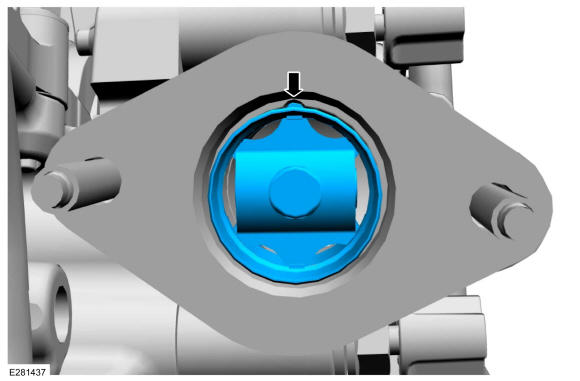

NOTE: Align the notch on the high-pressure fuel pump tappet and with the groove in the high-pressure fuel pump drive unit bore.

Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY

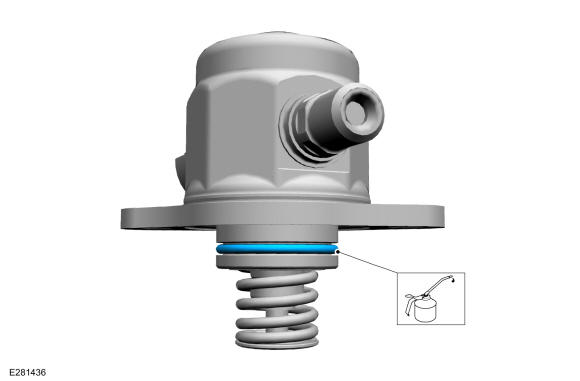

NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

Courtesy of FORD MOTOR COMPANY

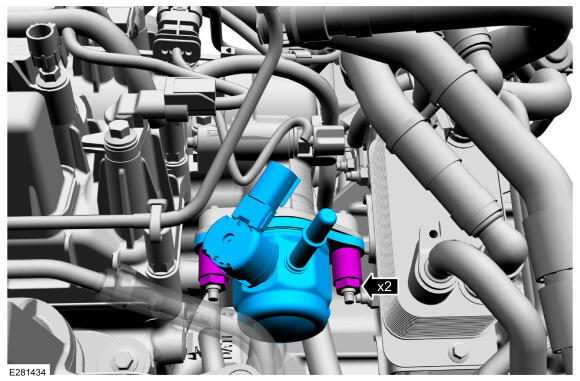

Install the high-pressure fuel pump, then install and finger tighten the high-pressure fuel pump nuts. Alternately tighten each of the high-pressure fuel pump nuts one complete revolution until seated. Then tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque:

Stage 1: Tighten to: : 177 lb.in (20 Nm) | Stage 2: Tighten an additional: : 45 deg.

Courtesy of FORD MOTOR COMPANY

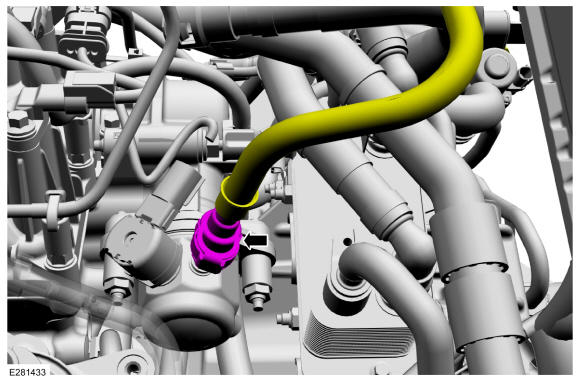

Connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: QUICK RELEASE COUPLING .

Courtesy of FORD MOTOR COMPANY
NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR CO.

NOTE: Make sure that a new high-pressure fuel pump to fuel rail high-pressure fuel tube is installed.

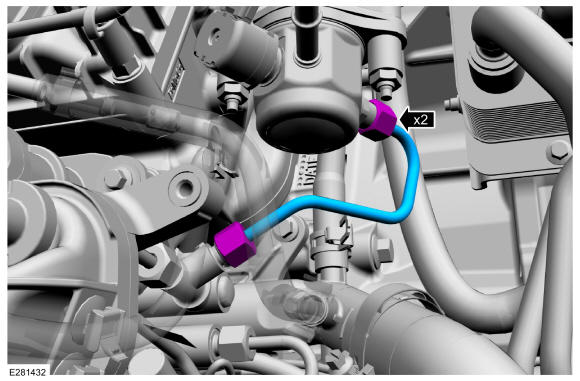

Install the high-pressure fuel pump to fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

Torque:

Stage 1: Tighten to: : 62 lb.in (7 Nm) | Stage 2: Tighten to: : 89 lb.in (10 Nm) | Stage 3: Tighten an additional: : 25 deg.

Courtesy of FORD MOTOR COMPANY

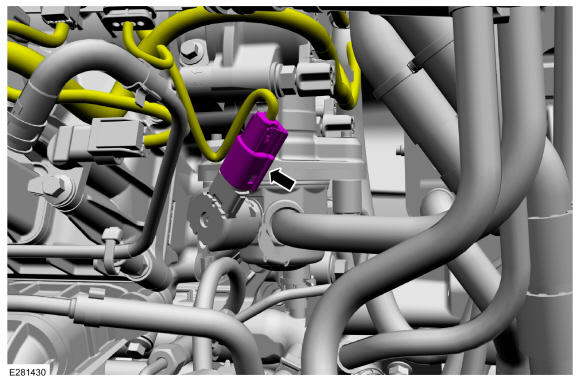

Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the charge air cooler (CAC) intake pipe - RH. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Connect the battery. Refer to: Battery Disconnect and Connect .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
