Electronic Engine Controls - Component Location
>>

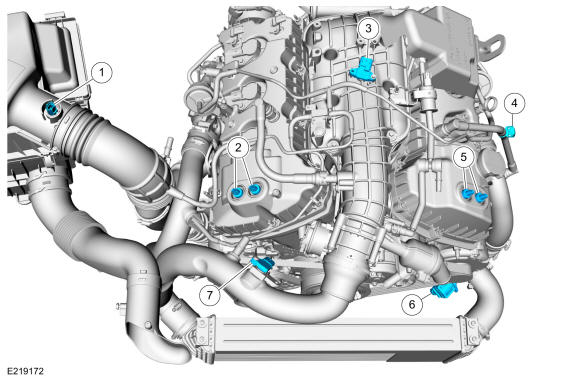

Electronic Engine Controls- Front
Electronic Engine Controls- Front
Courtesy of FORD MOTOR COMPANY
Item
Description
1
IAT sensor
2
RH VCT oil control solenoid
3
MAPT sensor
4
Crankcase pressure sensor
5
LH VCT oil control solenoid
6
Turbocharger By-Pass Valve
7
Turbocharger Boost Pressure and Charge Air Temperature Sensor
