Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

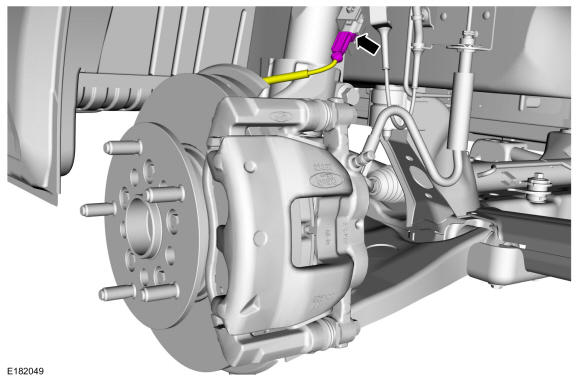

  2. Disconnect the front wheel speed sensor electrical connector.
    GFD307650Courtesy of FORD MOTOR COMPANY

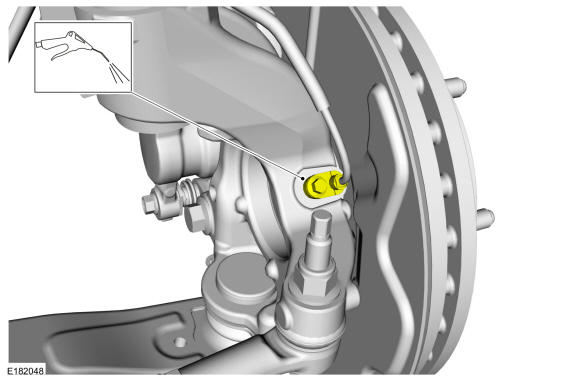

  3. Using compressed air, clean the area surrounding the front wheel speed sensor.
    GFD307651Courtesy of FORD MOTOR COMPANY

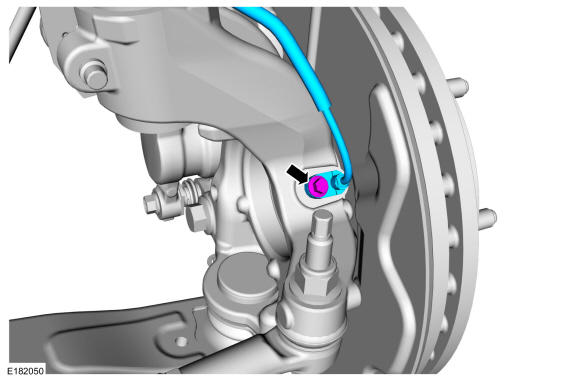

  4. Remove the bolt and the front wheel speed sensor.

    Torque: 97 lb.in (11 Nm)

GFD307652Courtesy of FORD MOTOR COMPANY
