Description And Operation
>>

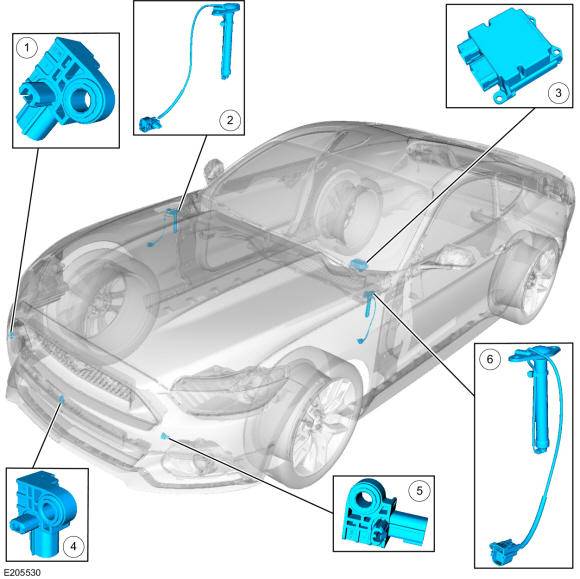

Pedestrian Protection System - Component Location
Pedestrian Protection System - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
RH pedestrian protection impact sensor
2
Pedestrian protection hood actuator RH
3
RCM
4
Center pedestrian protection impact sensor
5
LH pedestrian protection impact sensor
6
Pedestrian protection hood actuator LH
